Aspirator: Service and Repair

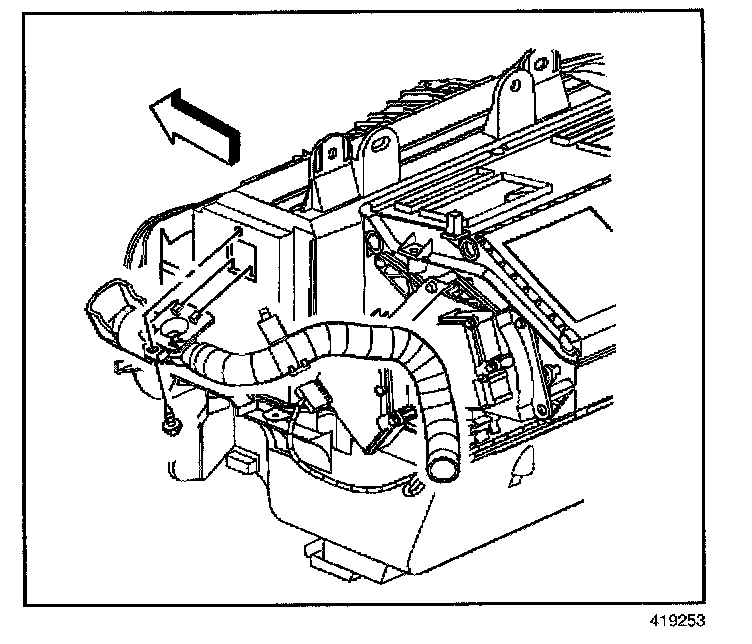

ASPIRATORREMOVAL PROCEDURE
1. Remove the left side sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gauges and Warning Indicators.
2. Remove the aspirator hose at the muffler.
3. Remove the aspirator mounting bolt.
4. Use a flat blade tool to lift the aspirator out of the HVAC case.
INSTALLATION PROCEDURE
1. Install the aspirator into the case.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the bolt.
Tighten
Tighten the fasteners to 1.4 N.m (12 lb in).
3. Connect the aspirator hose to the muffler.
4. Install the left side sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gauges and Warning Indicators.
