RIM Input/Output

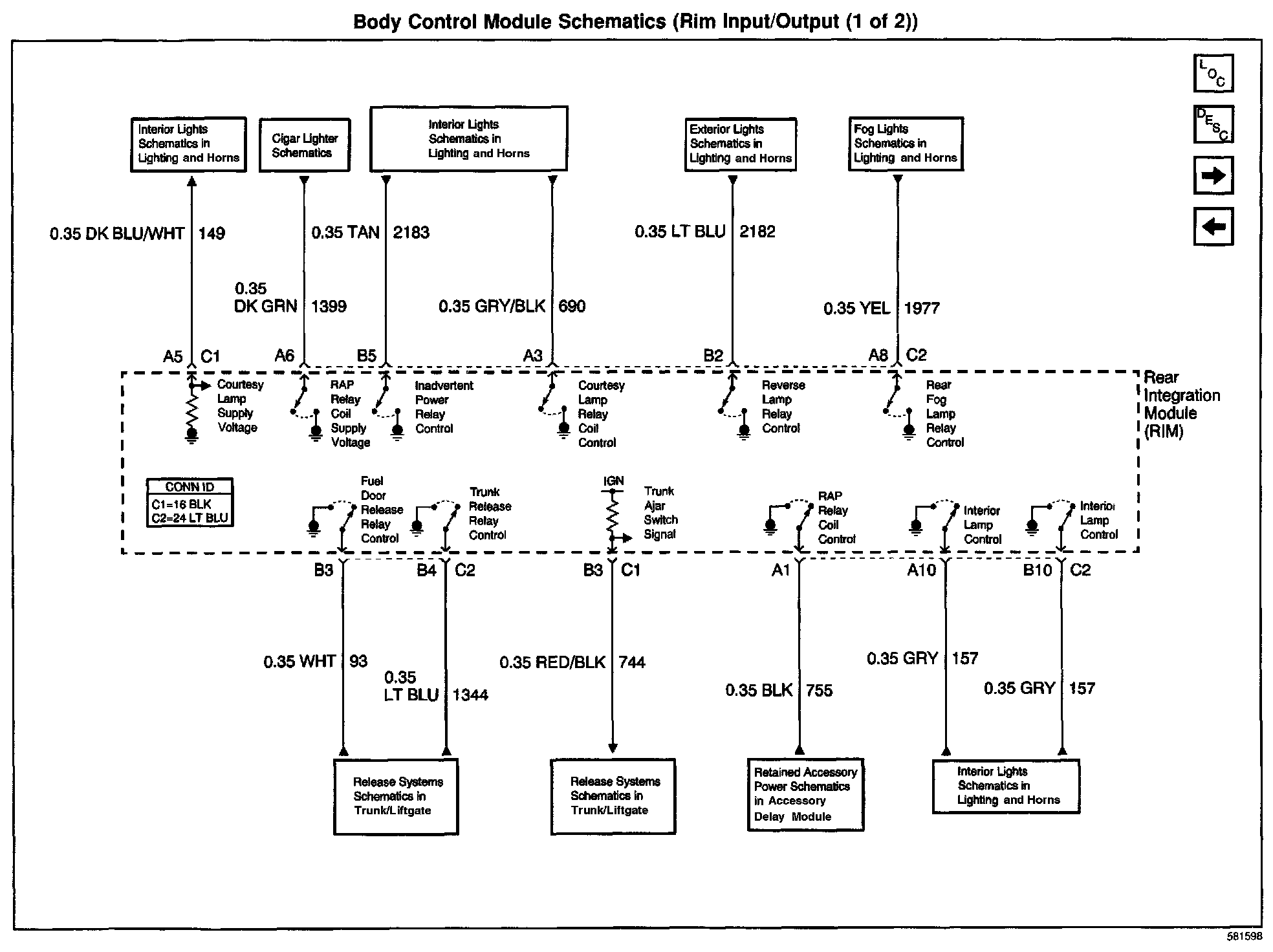

Body Control Module Schematics: RIM Input/Output (Part 1 Of 2):

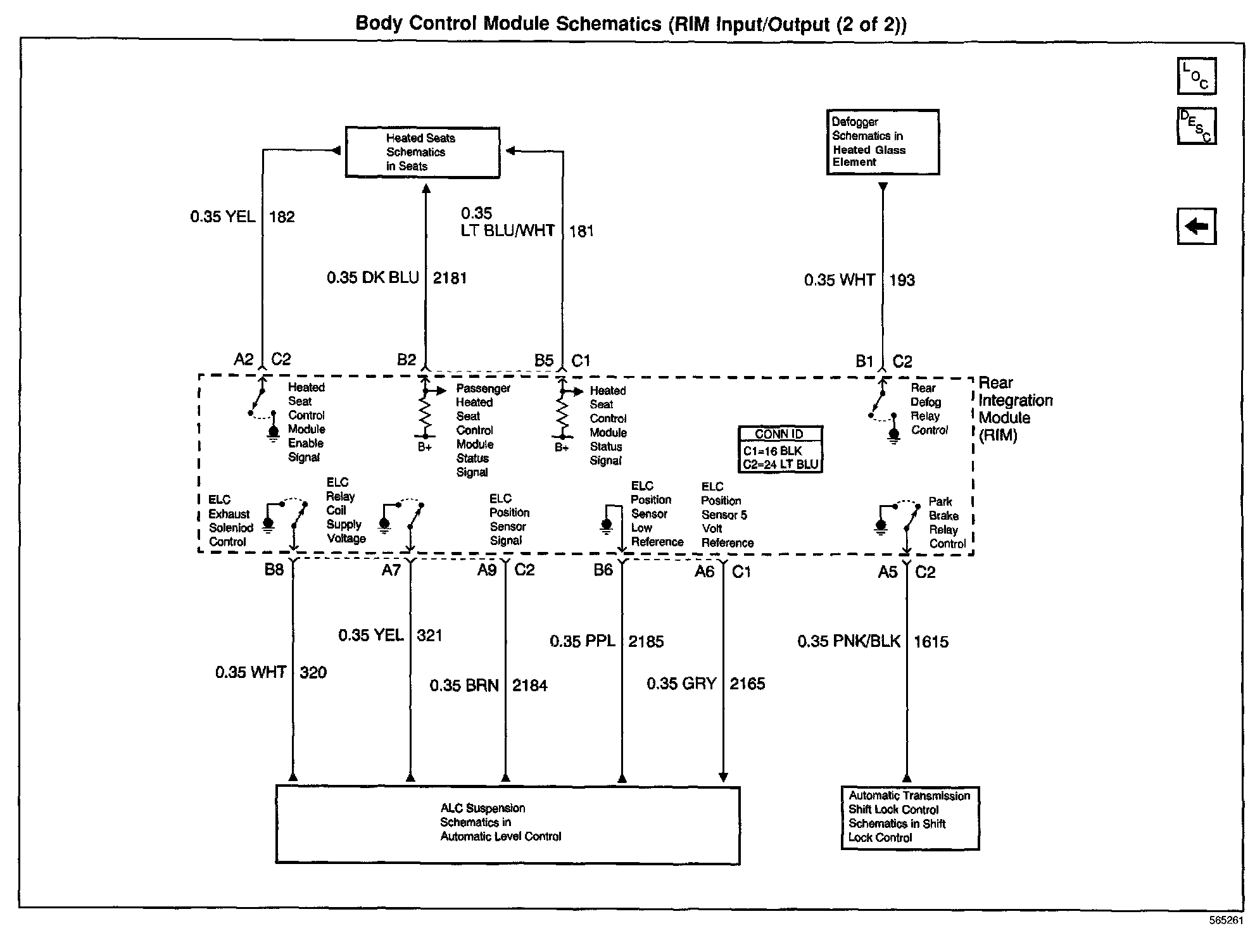

Body Control Module Schematics: RIM Input/Output (Part 2 Of 2):
