Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lights >> Turn Signal/Hazard Lamps-Left

Turn Signal/Hazard Lamps-Left

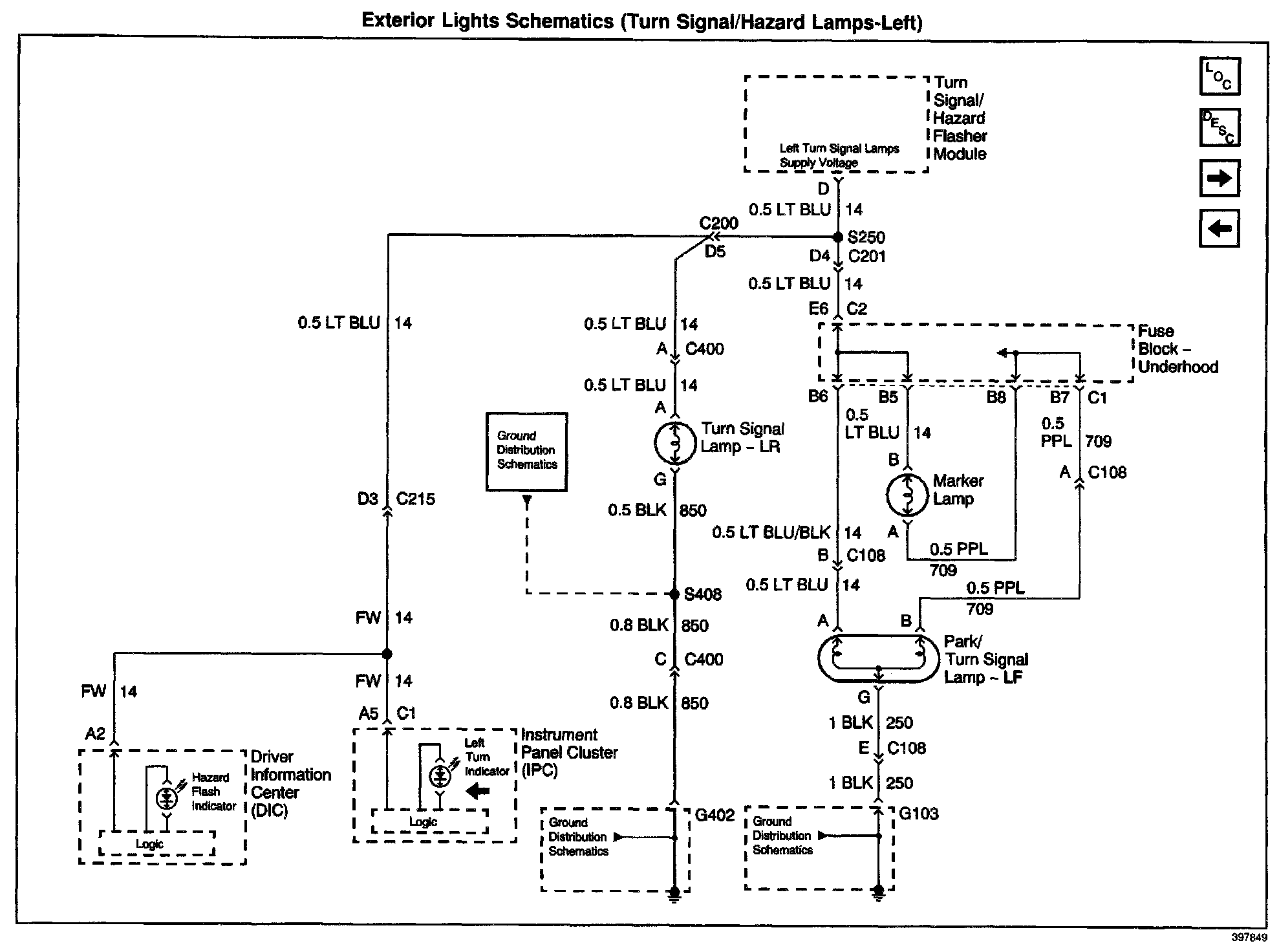

Exterior Lights Schematics: Turn Signal/Hazard Lamps-Left:
