A/T Inline Harness Connector End View
>>

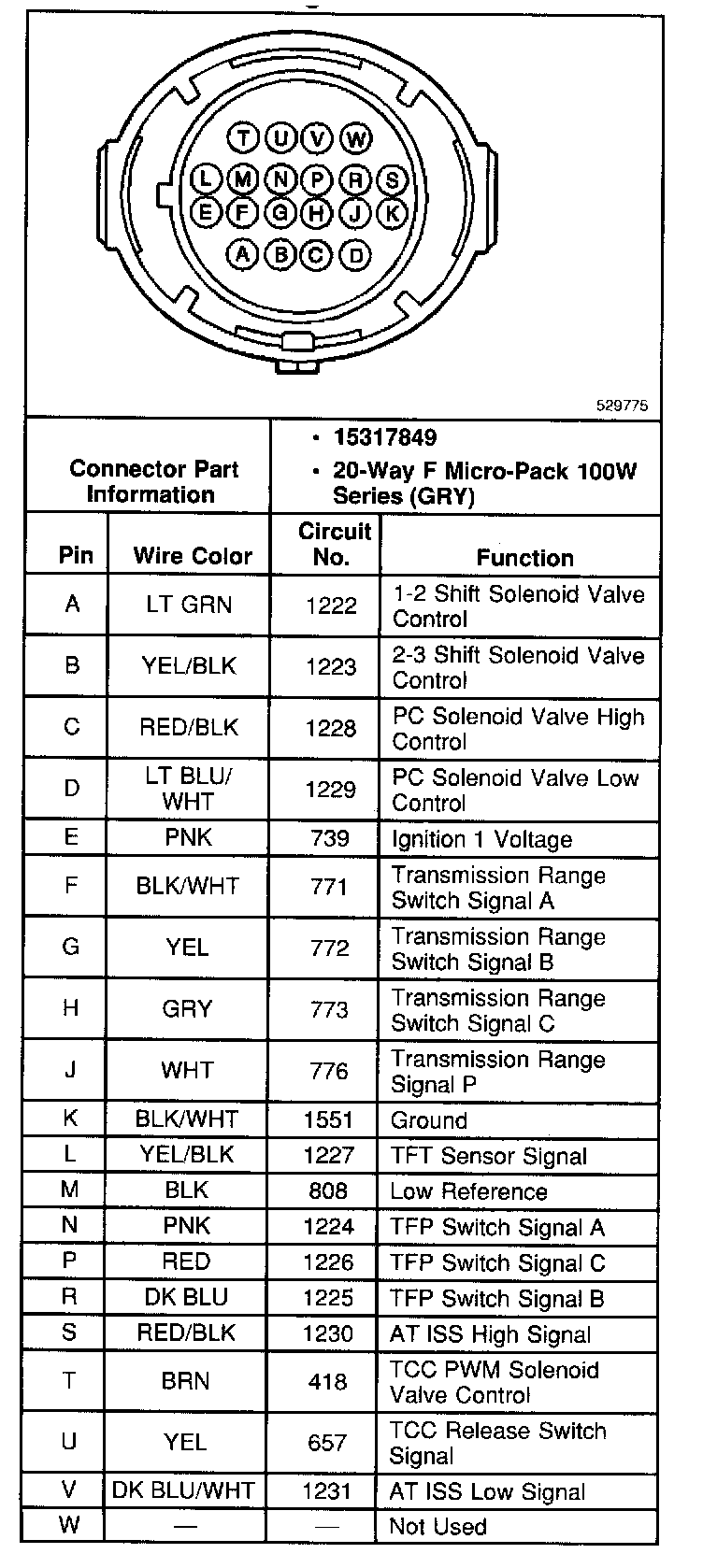

A/T Inline Harness 20-Way Connector, Engine Side
A/T Inline Harness 20-Way Connector, Engine Side
