Diagrams
>>
Connector Views
>>
Fuse Block
>>

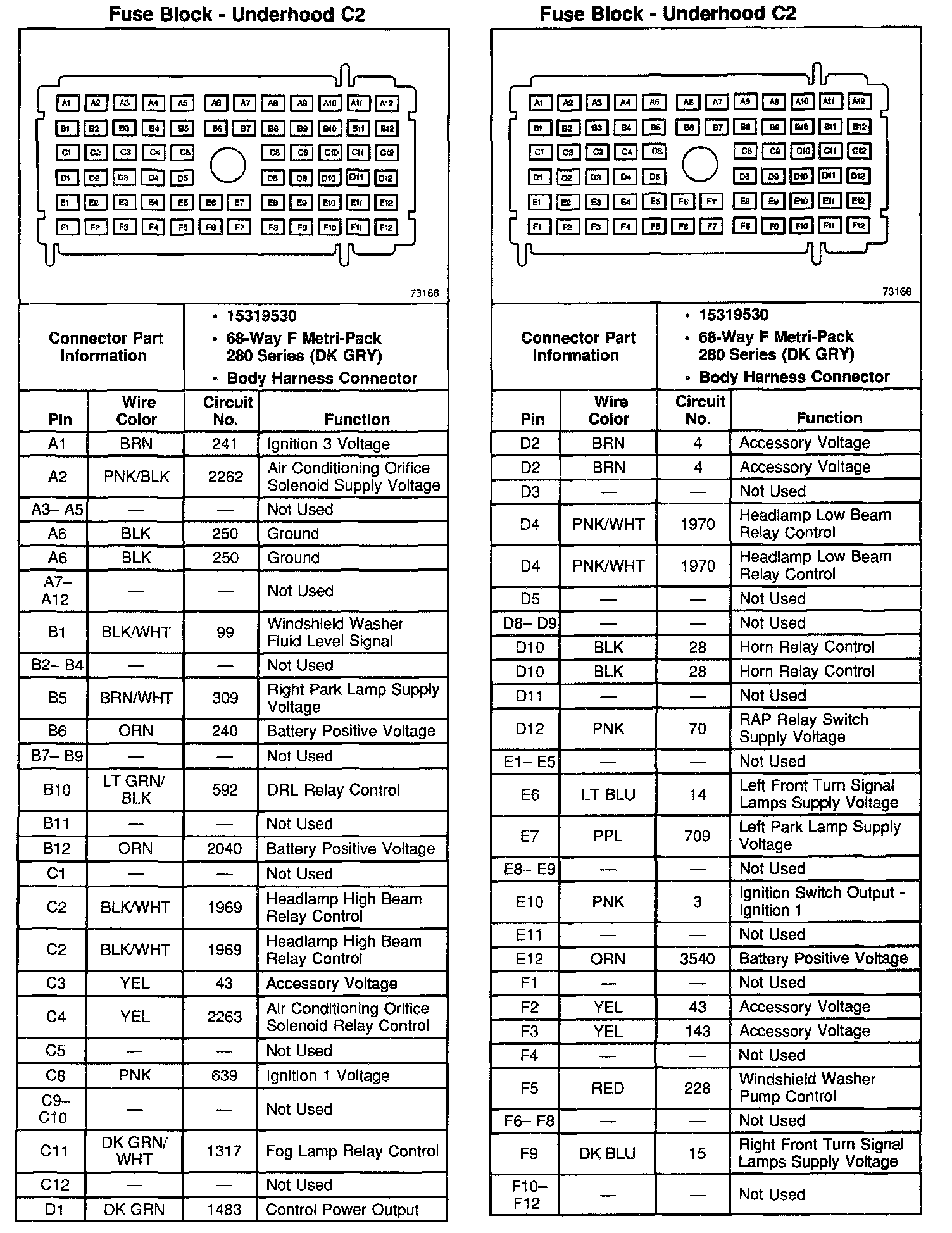

Fuse Block - Underhood Connector - C2
Fuse Block - Underhood Connector - C2
Fuse Block - Underhood C2:
