Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cellular Phone >> Vehicle Interface Unit (VIU) - C1

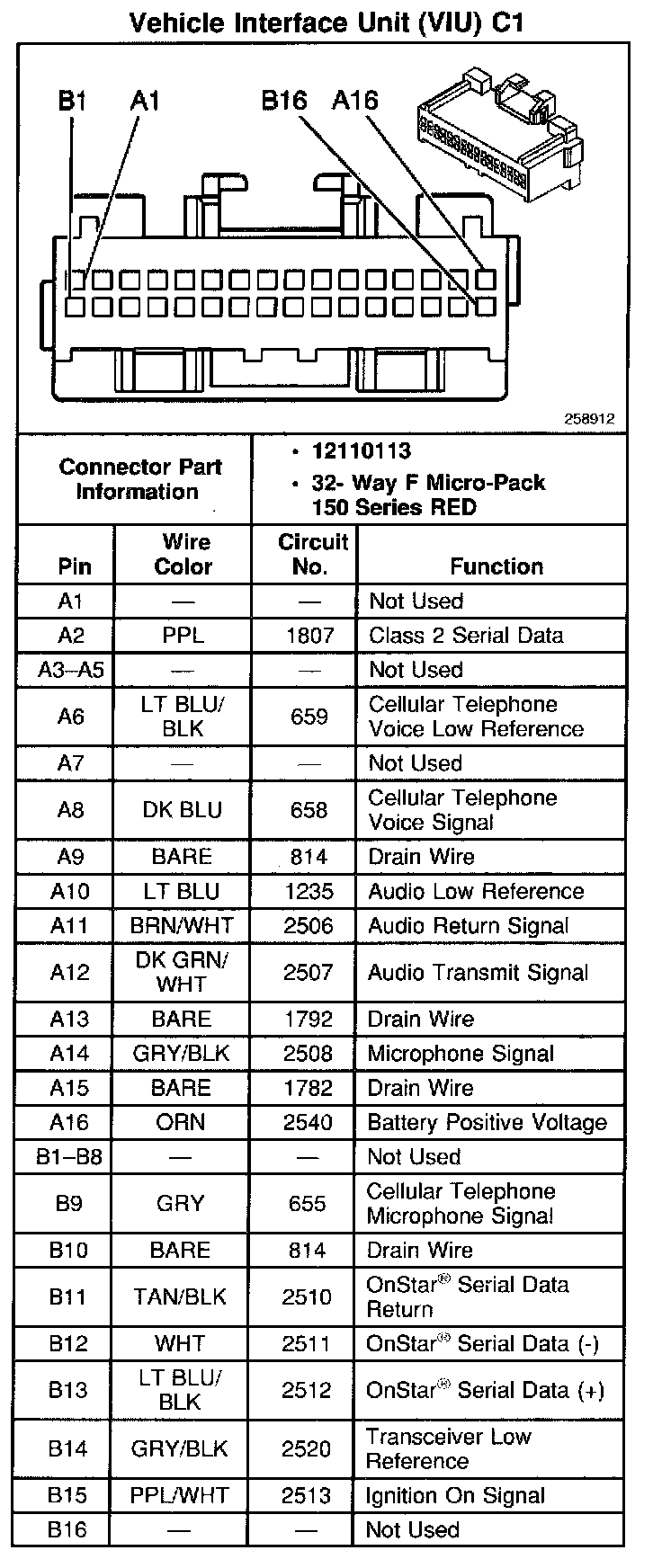

Vehicle Interface Unit (VIU) - C1

Vehicle Interface Unit (VIU) C1:
