Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cellular Phone >> Vehicle Communication Unit (Vcu)

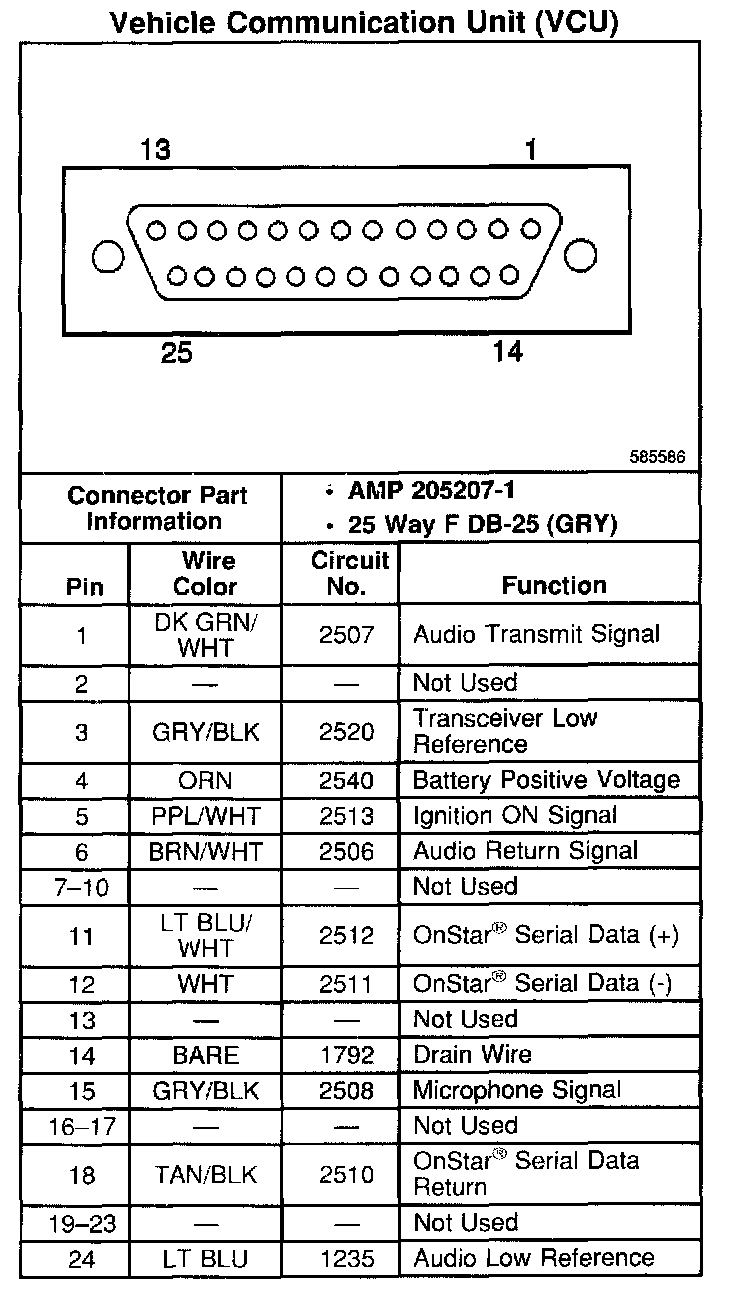

Vehicle Communication Unit (Vcu)

Vehicle Communication Unit (VCU):
