Brake Lamp
>>
Tail/Stop Lamp - Left
Tail/Stop Lamp - Left

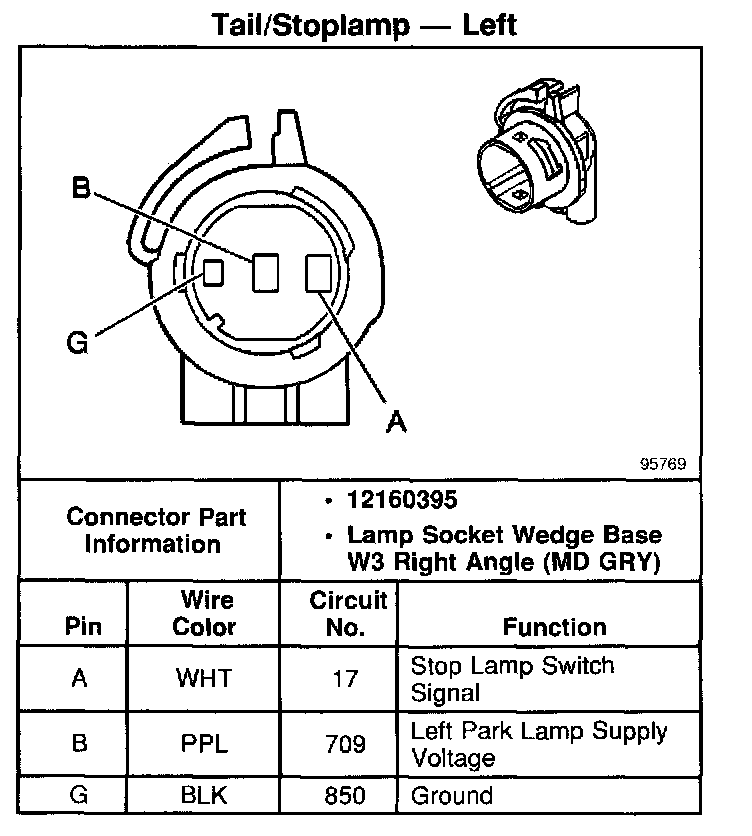

Tail/stoplamp - Left:
Tail/stoplamp - Right:
