Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Power Door Lock Actuator-Front Passenger C1 (Driver Similar)

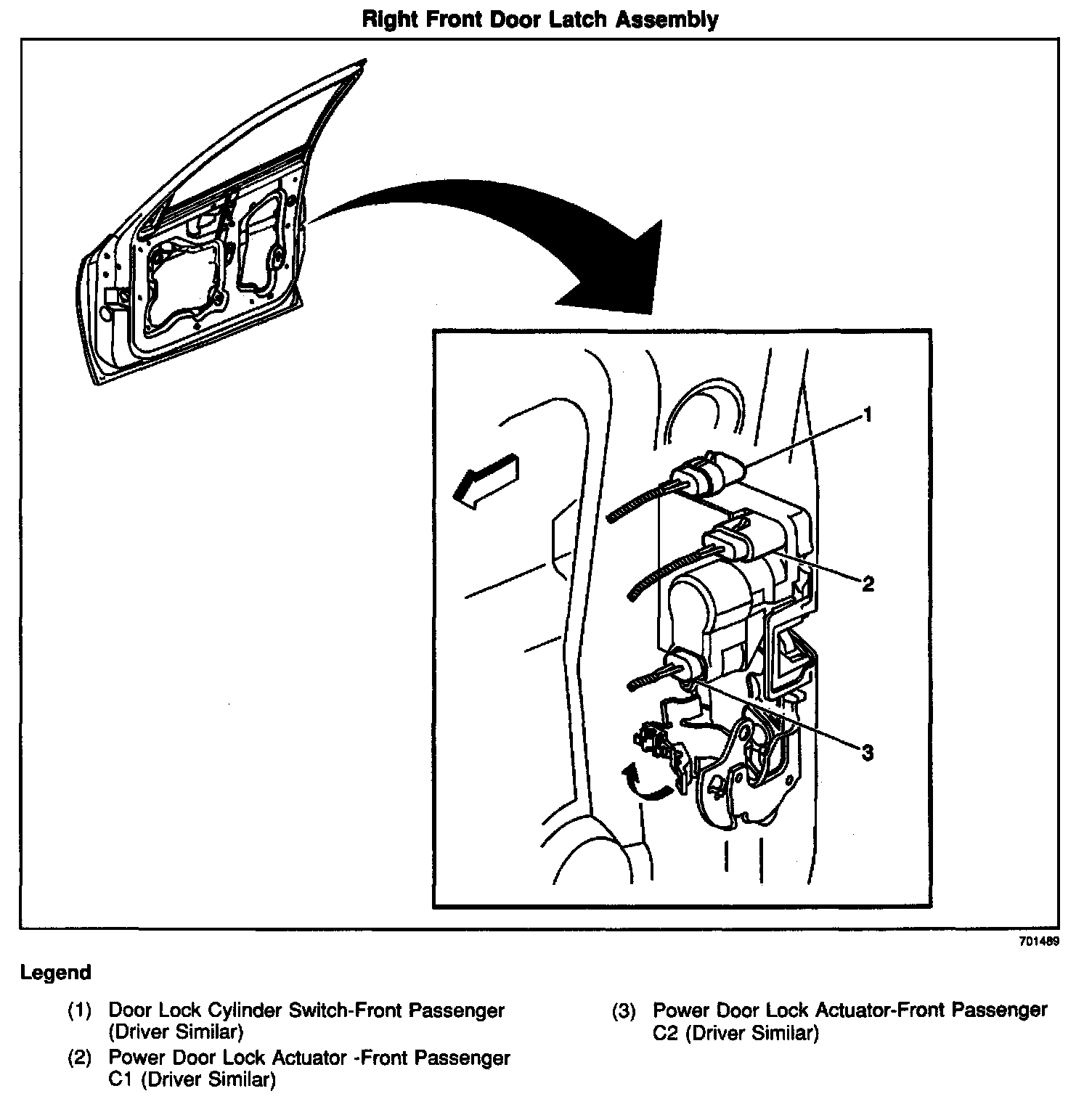

Power Door Lock Actuator-Front Passenger C1 (Driver Similar)

Locations View:
