Seat Temperature Element: Diagrams

Heated Seat Back Element-Driver:



Heated Seat Cushion Element-Driver:

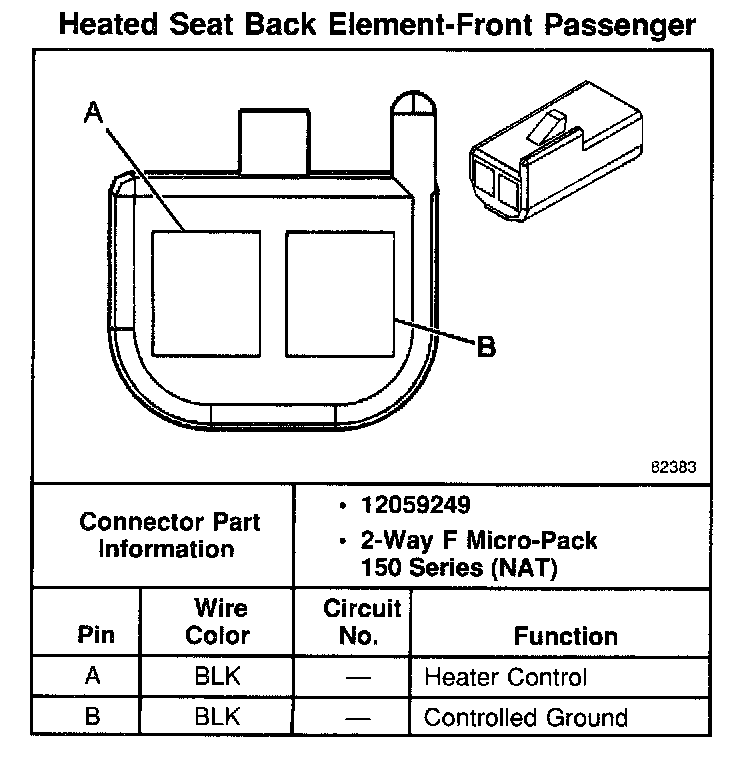

Heated Seat Back Element-Front Passenger:

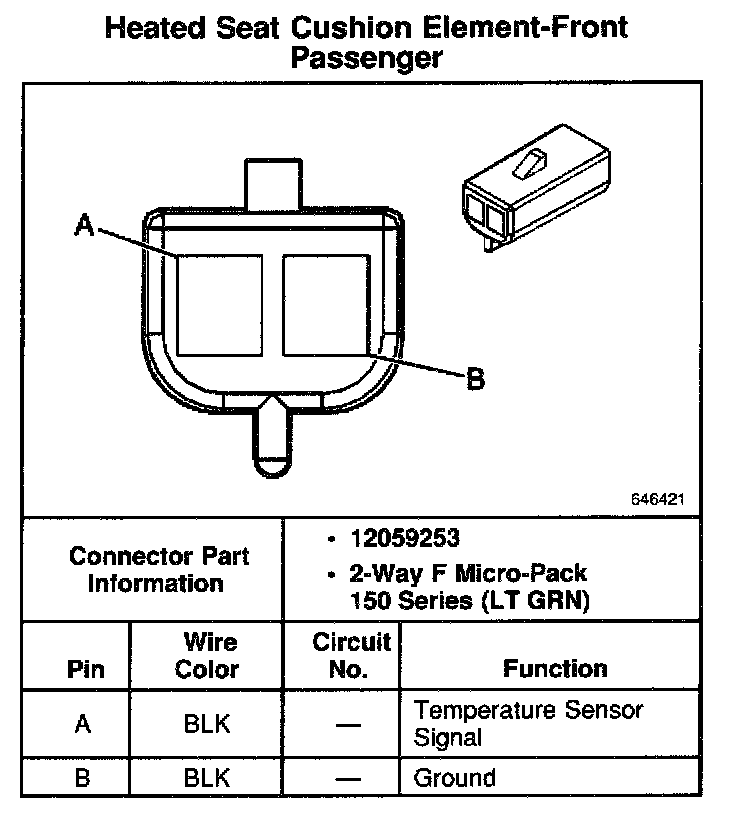

Heated Seat Cushion Element-Front Passenger:
