Rear Seat Back Cushion Cover and Pad Replacement

Rear Seat Back Cushion Cover and Pad Replacement

Removal Procedure

1. Remove the rear seat back. Refer to Rear Seat Back Cushion Replacement (Rear Seat Back Cushion Replacement).




2. Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement (Rear Seat Armrest Replacement).

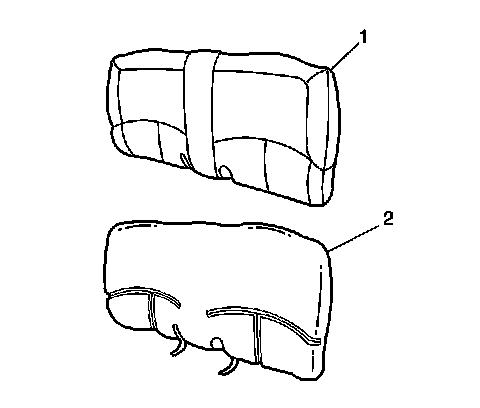

3. Remove the hog rings securing the seat back cover (1) to the seat back frame assembly.
4. Pull the seat back cover (1) from the seat back frame assembly.
5. Remove the seat back pad (2) from the seat back frame.

Installation Procedure




1. Install the seat back pad to the seat back frame.
2. Install the seat back cover (1) over the seat back pad and frame assembly.
3. Work the cover (1) and pad into position over the frame so there are no wrinkles or lumps in the seat back cover or pad.
4. Install the hog rings in order to secure the cover (1) to the rear seat back frame.
5. Install the rear seat armrest to the seat back. Refer to Rear Seat Armrest Replacement (Rear Seat Armrest Replacement).
6. Install the seat back assembly to the vehicle. Refer to Rear Seat Back Cushion Replacement (Rear Seat Back Cushion Replacement).
