Power Sunroof Does Not Open

DIAGNOSTIC AIDS
Refer to Testing for Electrical Intermittents and Testing for Intermittent and Poor Connections in Diagrams.

TEST

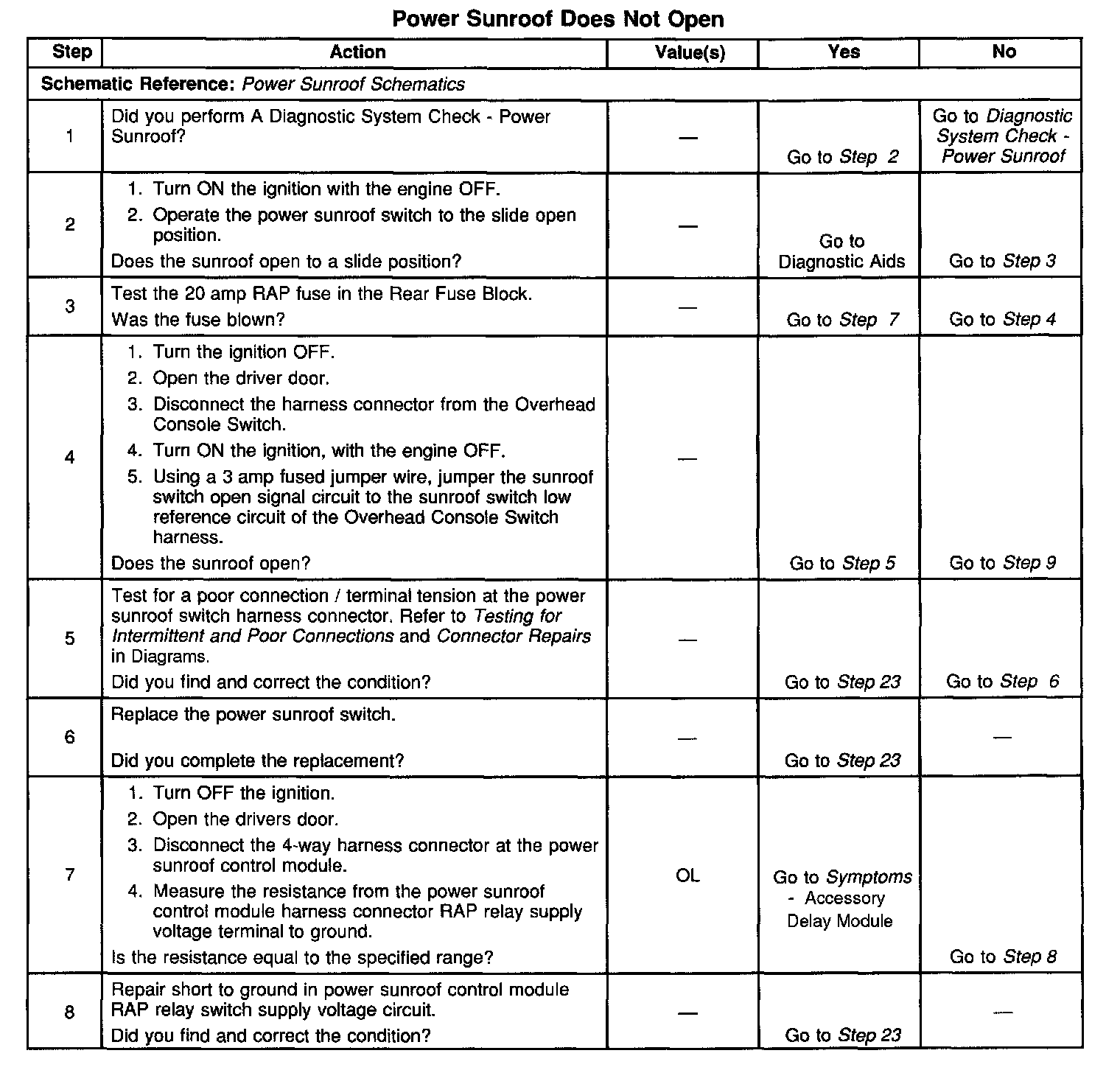

Steps 1-8:

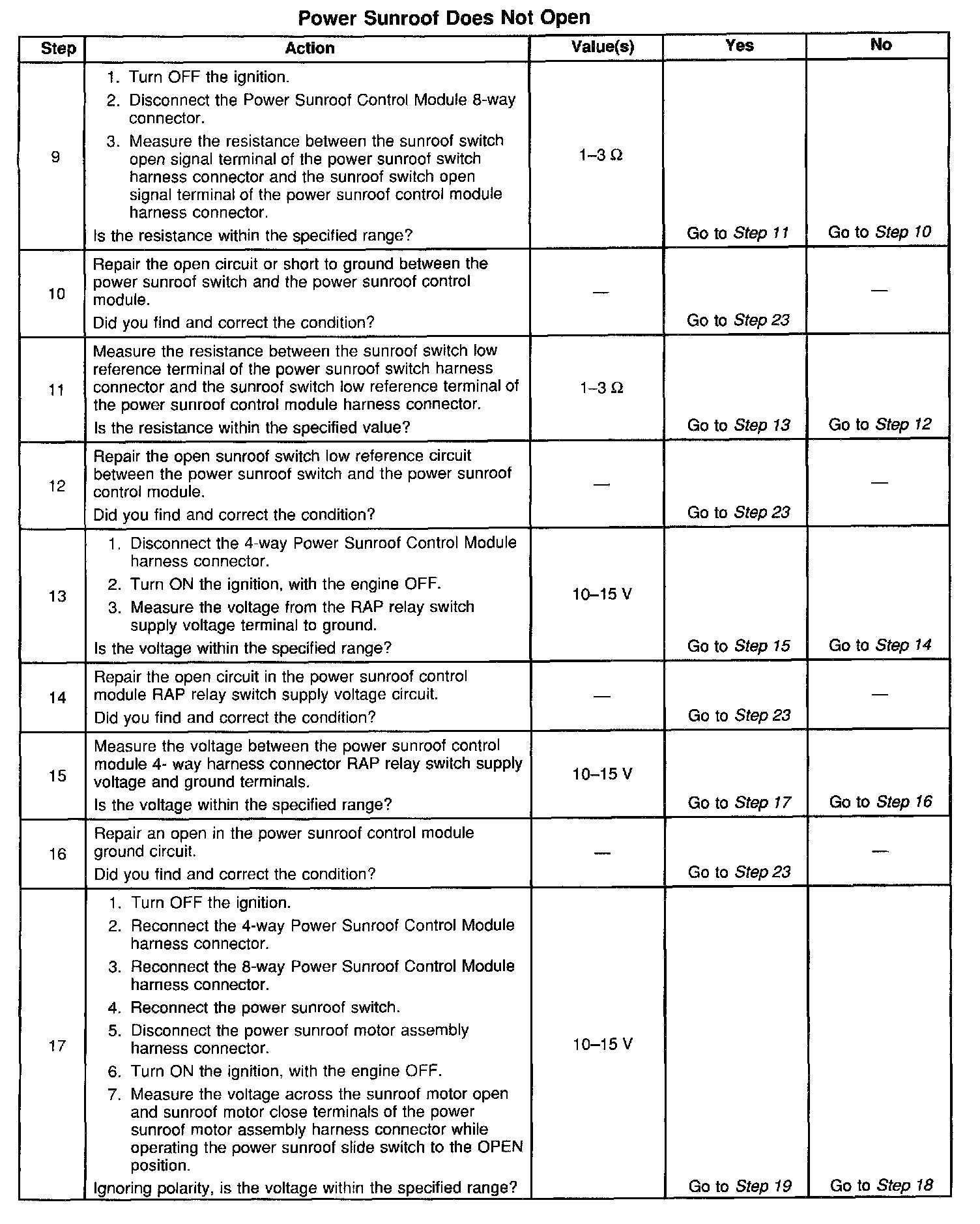

Steps 9-17:

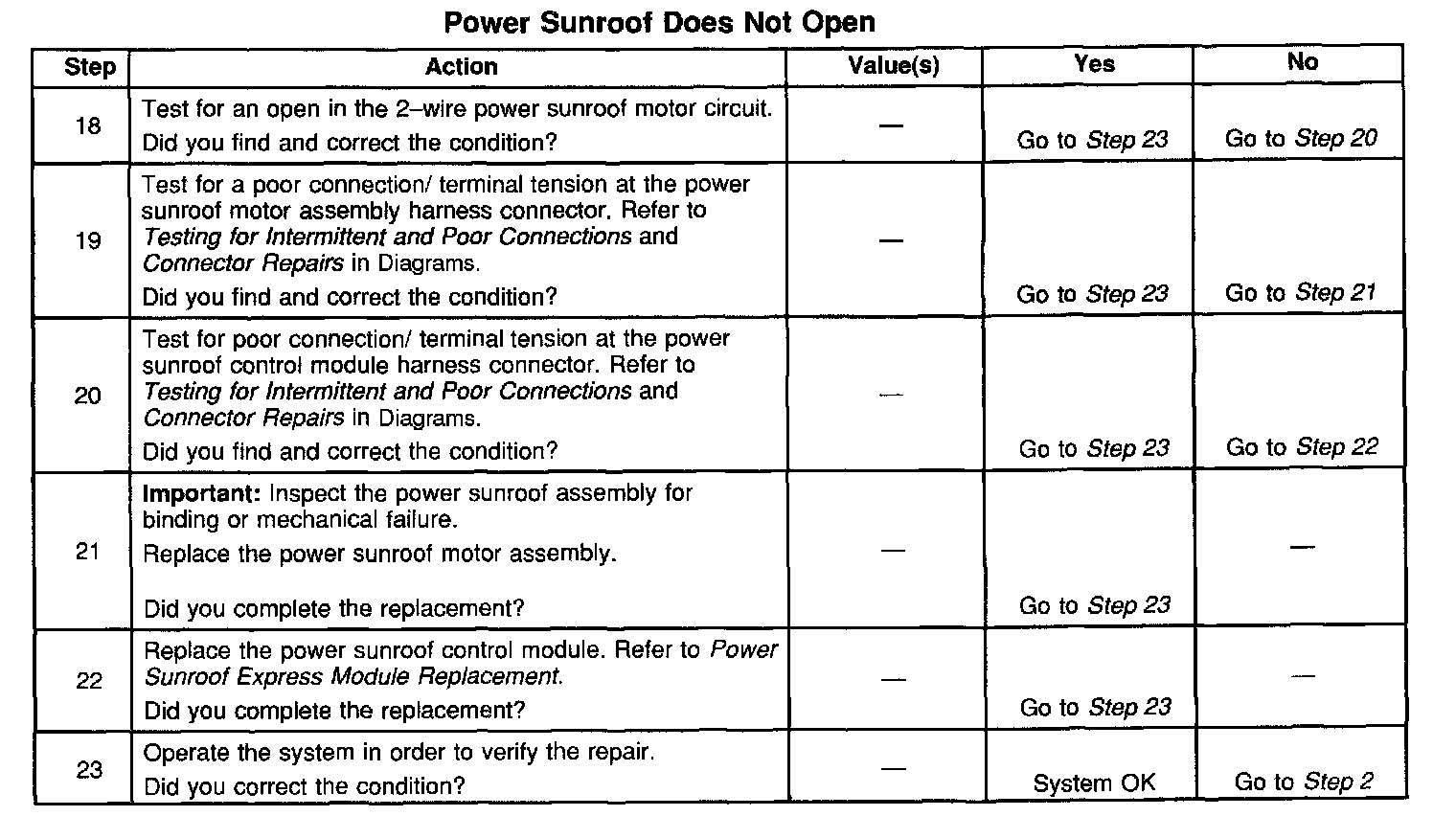

Steps 18-23:
