Rear Compartment Trim Panel Replacement

Rear Compartment Trim Panel Replacement

Removal Procedure

1. Remove the rear compartment sill plate. Refer to Rear Compartment Sill Trim Plate Replacement (Service and Repair).

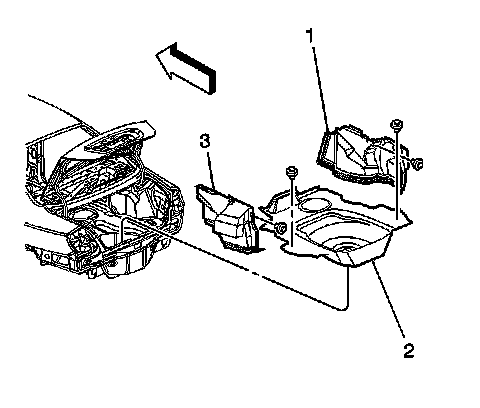

2. Remove the rear compartment floor trim panel retainers.
3. Remove the rear compartment floor trim panel (2).
4. Remove the rear compartment side trim panel retainers.
5. Remove the rear compartment side trim panels (1, 3).

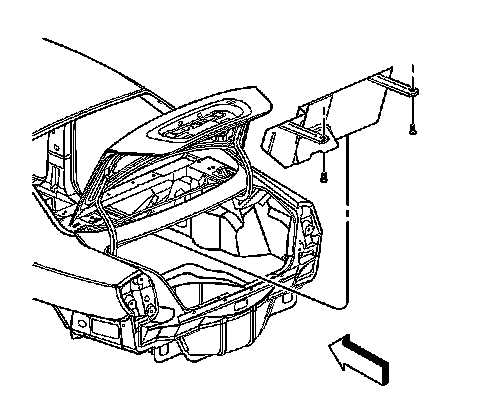

6. Remove the rear compartment front trim panel retainers.
7. Remove the rear compartment front trim panel.

Installation Procedure




1. Install the rear compartment front trim panel.
2. Install the rear compartment front trim panel retainers.




3. Install the rear compartment side trim panels (1, 3).
4. Install the rear compartment side trim panel retainers.
5. Install the rear compartment floor trim panel (2).
6. Install the rear compartment floor trim panel retainers.
7. Install the rear compartment sill plate. Refer to Rear Compartment Sill Trim Plate Replacement (Service and Repair).
