Scuff Plate: Service and Repair

Rear Compartment Sill Trim Plate Replacement

Removal Procedure

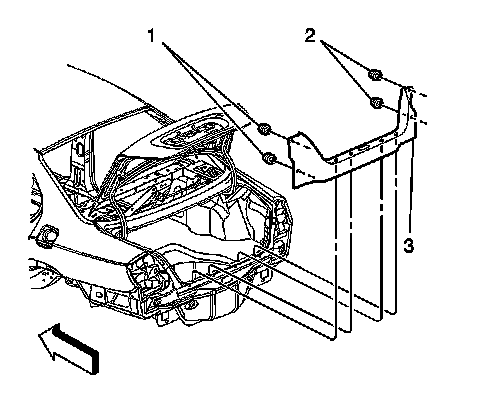

1. Remove the sill plate retainers (1, 2).
2. Pull upward on the sill plate (3) to release the spring clips and remove the sill plate from the vehicle.

Installation Procedure




1. Install the rear compartment sill plate (3) to the vehicle.

1. Align the sill plate spring clips with their slots.
2. Push downward and snap the sill plate into place.

2. Install the sill plate retainers (1, 2).
