Rear Shelf Trim Panel Carrier Replacement

Rear Shelf Trim Panel Carrier Replacement

Removal Procedure

1. Remove the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Rear Window Shelf Trim Panel Replacement).

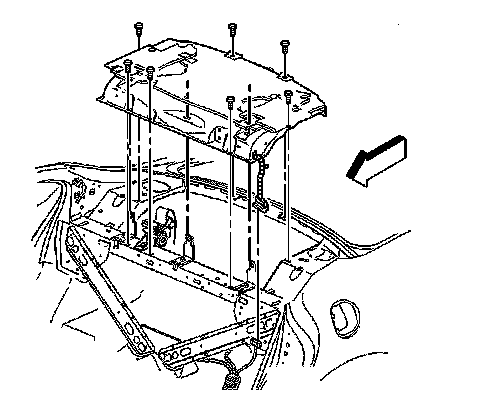

2. Remove the fasteners securing the carrier.
3. Disconnect the electrical connector.
4. Remove the rear shelf trim panel carrier from the vehicle.

Installation Procedure




1. Install the rear shelf trim panel carrier into the vehicle.
2. Connect the electrical connector.
3. Install the fasteners in order to secure the carrier.
Notice: Refer to Fastener Notice in Cautions and Notices.

Tighten the fasteners to 9 Nm (80 lb in).

4. Install the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Rear Window Shelf Trim Panel Replacement).
