Front Floor Console Side Trim Panel Replacement - Left Side

Front Floor Console Side Trim Panel Replacement - Left Side

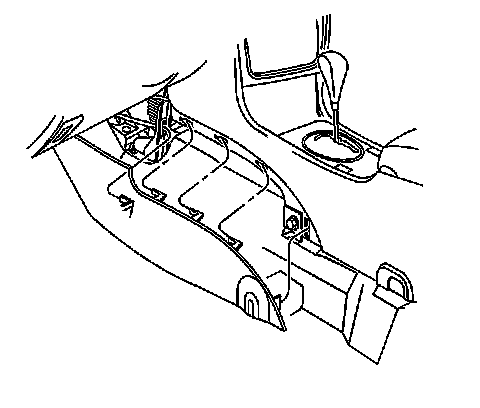

Removal Procedure




1. Pull out at the rear of the panel in order to disengage the clip.
2. Remove the panel by sliding rearward in vehicle.

Installation Procedure




1. Position the panel into the slots and slide forward.
2. Push on the rear of the panel to engage the clip.
