Front Floor Console Compartment Replacement

Front Floor Console Compartment Replacement

Removal Procedure

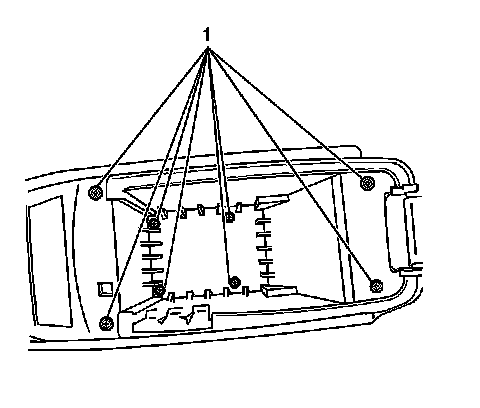

1. Remove the fasteners (1) that fasten the storage bin to the console.
2. Remove the storage bin from the console.

Installation Procedure




1. Install the storage bin into the console.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the fasteners (1) to the storage bin.

Tighten the fasteners to 1.4 Nm (12 lb in).
