Front Floor Console Compartment Door Replacement

Front Floor Console Compartment Door Replacement

Removal Procedure

1. Remove the rear console trim plate. Refer to Console Rear Trim Plate Replacement (Console Rear Trim Plate Replacement).

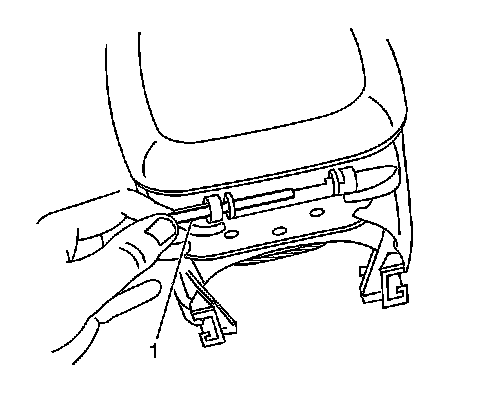

2. Remove the two clips holding the pin (1) into the console.
3. Remove the pin (1) in order to remove the door assembly.

Installation Procedure




1. Install the door and the pin (1) to the console.
2. Install the two clips to the pin (1).
3. Install the rear console trim plate. Refer to Console Rear Trim Plate Replacement (Console Rear Trim Plate Replacement).
