Rear Floor Panel Carpet Replacement

Rear Floor Panel Carpet Replacement

Removal Procedure

Caution: Refer to SIR Handling Caution in Cautions and Notices.

1. Disable the SIR system. Refer to Disabling the SIR System in SIR.




2. Remove the front seats. Refer to Bucket Seat Replacement (Bucket Seat Replacement) in Seats.
3. Remove the center console, if equipped. Refer to Front Floor Console Replacement (Front Floor Console Replacement) in Instrument Panel, Gages and Console.
4. Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement) in Seats.
5. Remove the center pillar garnish moldings. Refer to Center Pillar Garnish Molding Replacement (Center Pillar Garnish Molding Replacement).
6. Remove the rear carpet retainer. Refer to Carpet Retainer Replacement (Carpet Retainer Replacement).

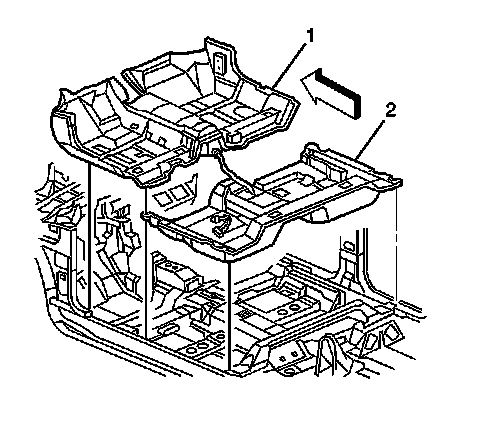

7. Remove the rear carpet (2) from the vehicle.

Installation Procedure

Caution: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.




1. Lay the rear carpet (2) into the vehicle.
2. Install the rear carpet retainer. Refer to Carpet Retainer Replacement (Carpet Retainer Replacement).
3. Install the center pillar garnish moldings. Refer to Center Pillar Garnish Molding Replacement (Center Pillar Garnish Molding Replacement).
4. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement) in Seats.
5. Install the center console, if equipped. Refer to Front Floor Console Replacement (Front Floor Console Replacement) in Instrument Panel, Gages and Console.
6. Install the front seats. Refer to Bucket Seat Replacement (Bucket Seat Replacement) in Seats.
7. Enable the SIR system. Refer to Enabling the SIR System in SIR.
