Front Side Door Opening Floor Carpet Retainer Replacement

Front Side Door Opening Floor Carpet Retainer Replacement

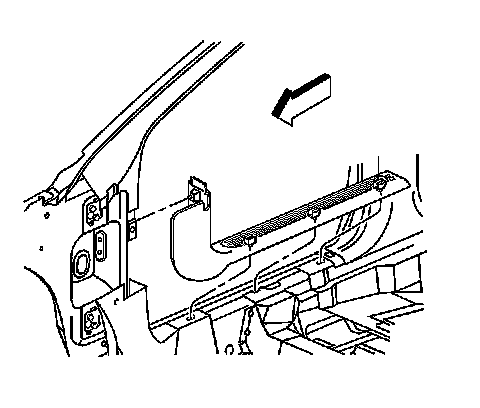

Removal Procedure

1. Open the door.




2. Carefully lift upwards in order to release the retaining clips securing the carpet retainer to the body.
3. Remove the carpet retainer from the vehicle.

Installation Procedure




1. Position the carpet retainer retaining clips to the openings in the body.
2. Push downward in order to engage the retainer clips securing the carpet retainer to the vehicle.
3. Close the door.
