Hood Primary Latch Striker Replacement

Hood Primary Latch Striker Replacement

Removal Procedure

1. Open the hood.
2. Mark the location of the hood striker on the underside of the hood.

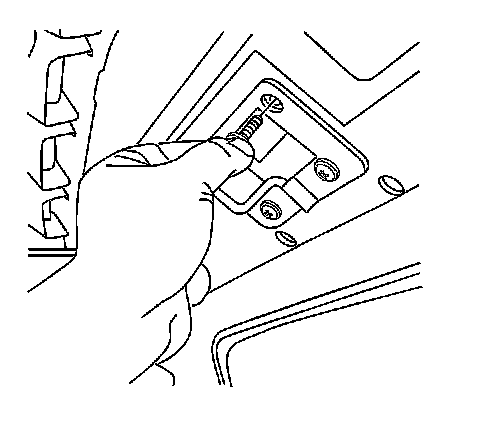

3. Remove the fasteners retaining the hood striker to the hood.
4. Remove the hood striker from the hood.

Installation Procedure




1. Position the hood striker to the marks on the underside of the hood.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the fasteners to retain the hood striker to the hood.

Tighten the fasteners to 9 Nm (80 lb in).

3. Close the hood.
