Home >> Oldsmobile >> 2001 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Body Control Module >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Instrument Panel Module (IPM)

Instrument Panel Module (IPM)

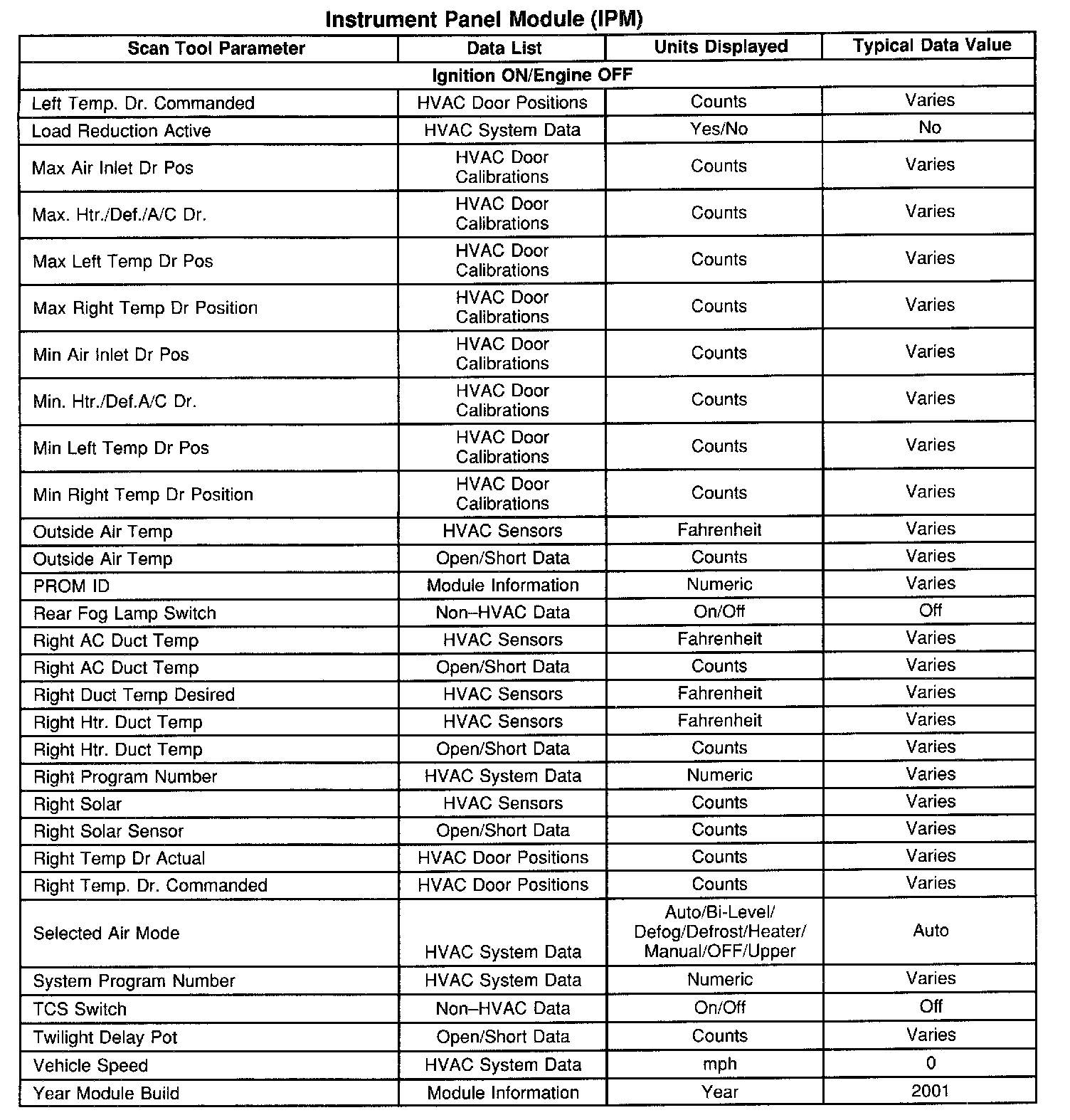

Instrument Panel Module (IPM) (Part 1 Of 2):



Instrument Panel Module (IPM) (Part 2 Of 2):
