Radio/Stereo: Service and Repair

RADIO REPLACEMENT

REMOVAL PROCEDURE

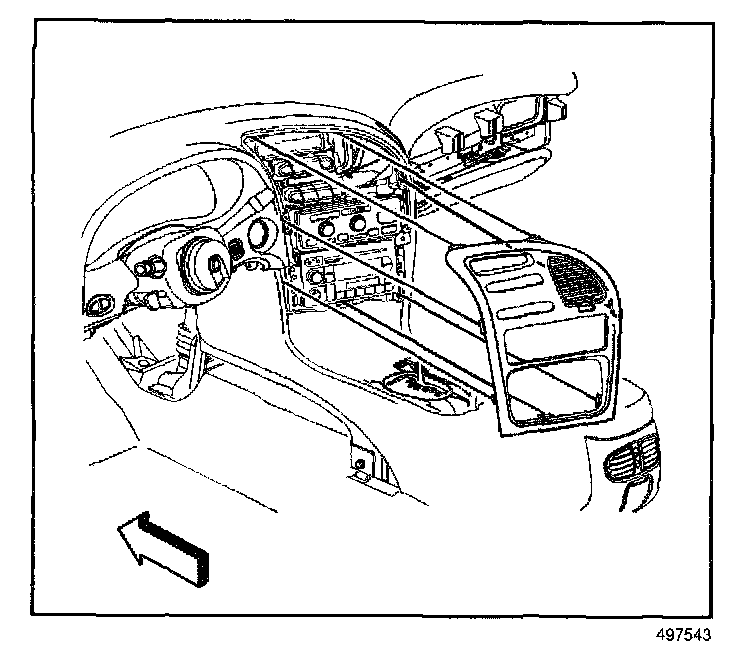

1. Remove the instrument panel cluster trim plate.
2. Depress the spring clip retainers at the sides of the radio.
3. Pull the radio straight out to remove.

INSTALLATION PROCEDURE




1. Install the radio into the instrument panel.
2. Ensure the spring clips are fully engaged.
3. Install the instrument panel cluster trim plate.
