U1500

CIRCUIT DESCRIPTION
The VCU and VIU communicate using the OnStar(R) Serial Data (-) circuit, OnStar(R) Serial Data(+) circuit and the OnStar(R) Serial Data Return circuit. The DTC U1500 is set when the VIU detects no communication between the VIU and the Vehicle Communication Unit (VCU).

CONDITIONS FOR SETTING THE DTC
^ The ignition must be in the RUN or ACC position.
^ The system voltage is at least 9.5 volts and no more than 15.5 volts.
^ All the above conditions are present for greater than 300 ms.

ACTION TAKEN WHEN THE DTC SETS
^ The VIU does not communicate with the VCU.
^ No calls can be placed.
^ The OnStar(R) status LED turns RED.

CONDITIONS FOR CLEARING THE DTC
^ The VIU does not detect a open on the battery positive voltage circuit.
^ The VIU does not detect a short to ground on the serial data return circuit.
^ The VIU does not detect a short to B+ on serial data (-) circuit.
^ A history DTC clears after 50 malfunction free ignition cycles.
^ The VIU receives the clear DTC command from the scan tool.

TEST DESCRIPTION

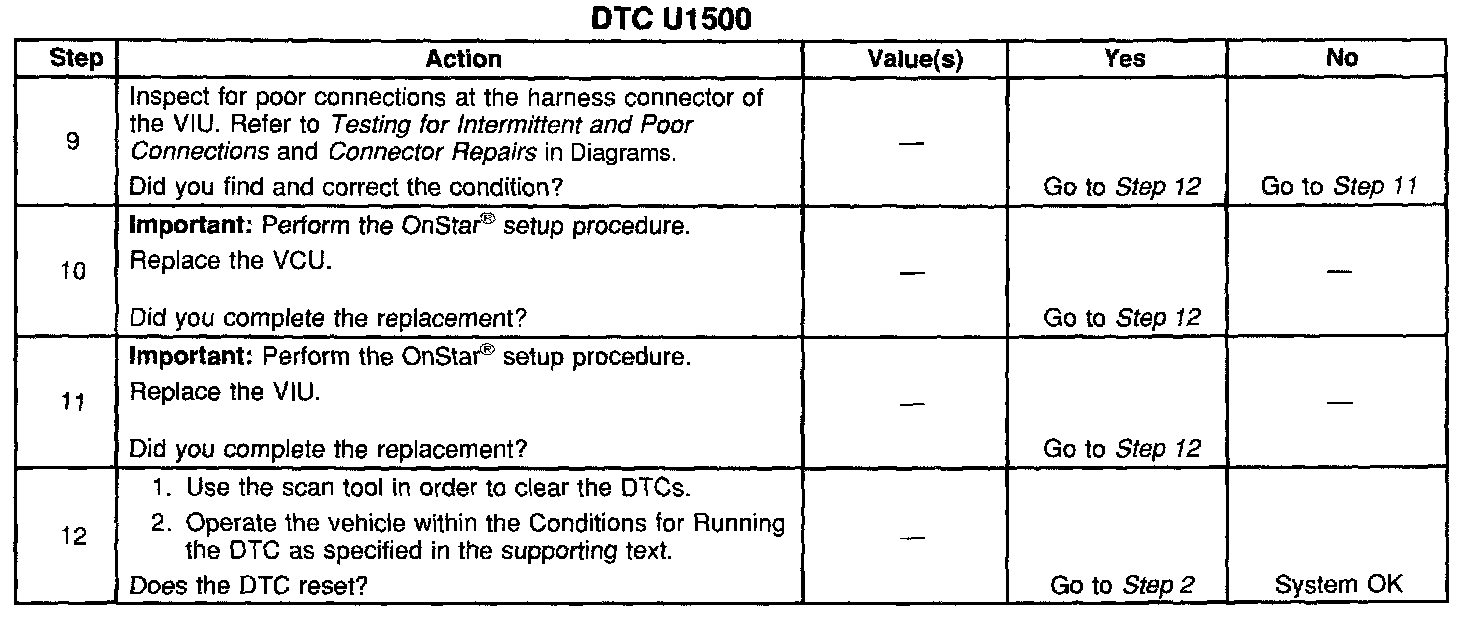

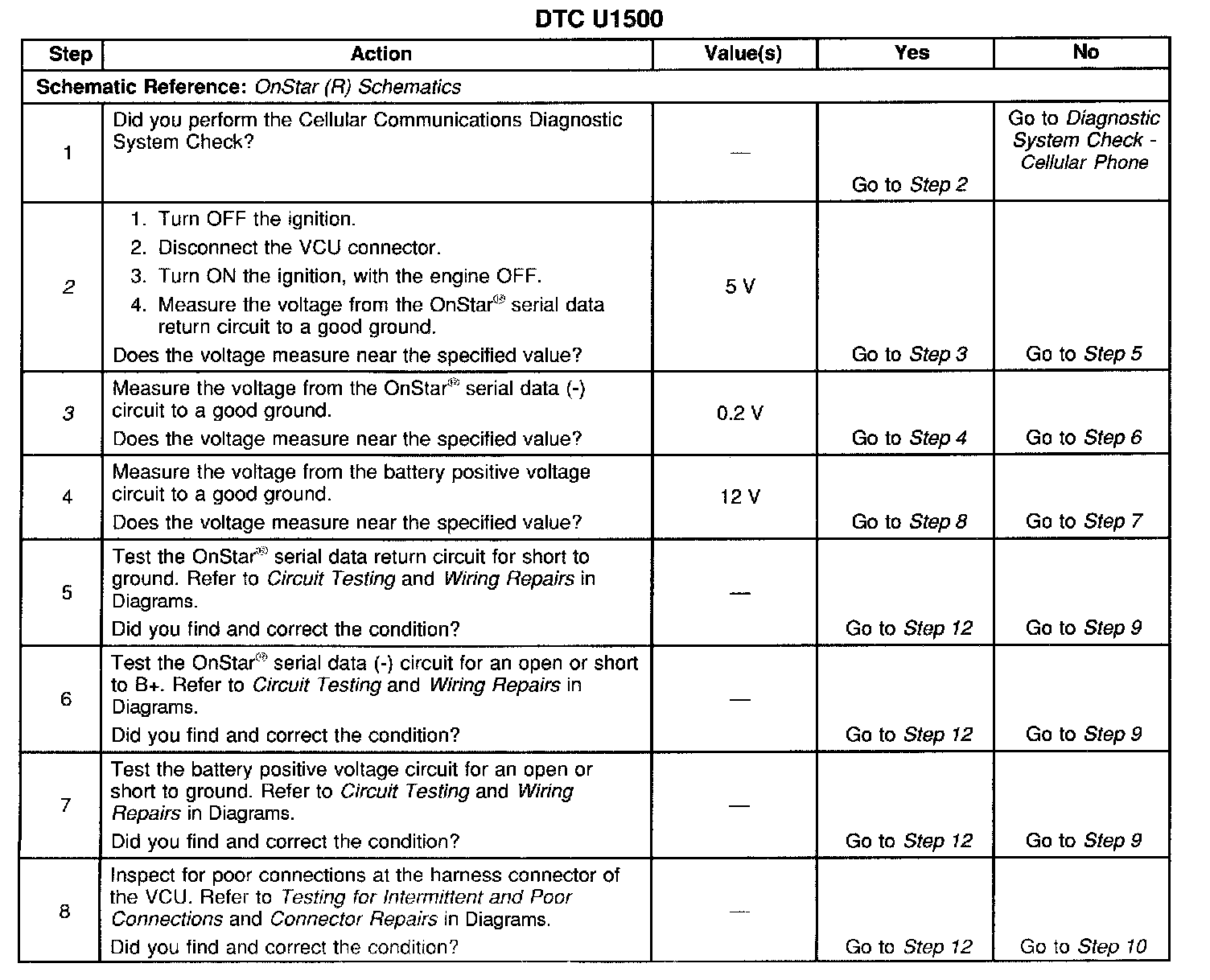

Steps 1-8:

Steps 9-12:

The number(s) below refer to the step number(s) on the diagnostic table.
2. By disconnecting the VCU you can check the three wire bus supply and carrier voltages supplied by the VIU.
3. By disconnecting the VCU you can check the three wire bus supply and carrier voltages supplied by the VIU.
