4T65-E Automatic Transaxle

DTC P0716

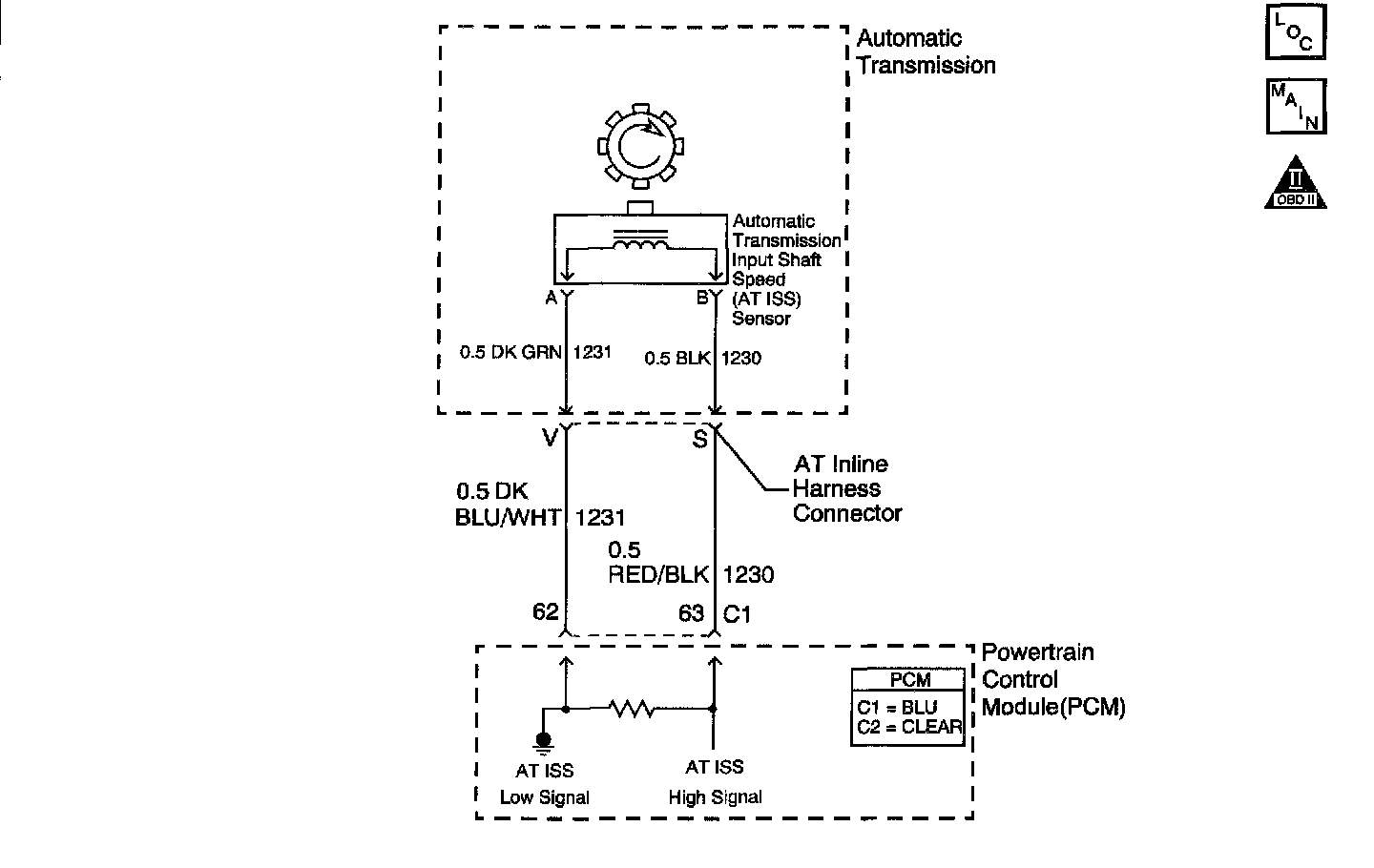

Circuit Description with 4T65-E Automatic Transaxle
The automatic transmission input shaft speed (AT ISS) sensor is a permanent magnet with a coil of wire wound around it. The AT ISS sensor mounts in the case cover facing the reluctor wheel of the input shaft. As the reluctor wheel is driven by the turbine shaft, an AC signal is induced in the input speed sensor. Higher vehicle speeds induce a higher frequency and voltage at the sensor.
There is a fixed air gap between the sensor and the teeth on the sensor reluctor wheel. The AT ISS sensor input is used by the PCM in order to control line pressure, TCC apply and release and transmission shift patterns. This sensor is also used to calculate the appropriate gear ratios and TCC slippage.
This diagnostic indicates stuck, erratic, or intermittent conditions in the system.
If the PCM detects an unrealistically large change in the AT ISS sensor high signal in a short period of time, then DTC P0716 sets. DTC P0716 is a type B DTC.

Conditions for Running the DTC
^ No TP sensor DTC P0121, P0122 or P0123.
^ No VSS DTC P0502 or P0503.
^ No AT ISS sensor DTC P0717 is set and DTC P0717 has passed this ignition cycle.
^ No 1-2, 3-4 shift solenoid valve DTC P0751, P0752 or P0753.
^ The engine speed is greater than 500 RPM for 5 seconds and not in fuel shut off.
^ The TP angle is greater than 14%.
^ The vehicle speed is greater than 8 km/h (5 mph).

Conditions for Setting the DTC
The input shaft speed changes by greater than 1300 RPM in 0.8 seconds.

Action Taken When the DTC Sets
^ The PCM illuminates the malfunction indicator lamp (MIL) during the second consecutive trip in which the conditions for setting the DTC are met.
^ The PCM inhibits TCC.
^ The PCM freezes shift adapts.
^ The PCM inhibits 4th gear if the transmission is in Hot Mode.
^ The PCM records the operating conditions when the Conditions for Setting the DTC are met. The PCM stores this information as Freeze Frame and Failure Records.
^ The PCM stores DTC P0716 in PCM history during the second consecutive trip in which the conditions for setting the DTC are met.

Conditions for Clearing the MIL/DTC
^ The PCM turns OFF the MIL during the third consecutive trip in which the diagnostic test runs and passes.
^ A scan tool can clear the MIL/DTC.
^ The PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without an emission-related diagnostic fault occurring.
^ The PCM cancels the DTC default actions when the ignition switch is OFF long enough in order to power down the PCM.

Test Description

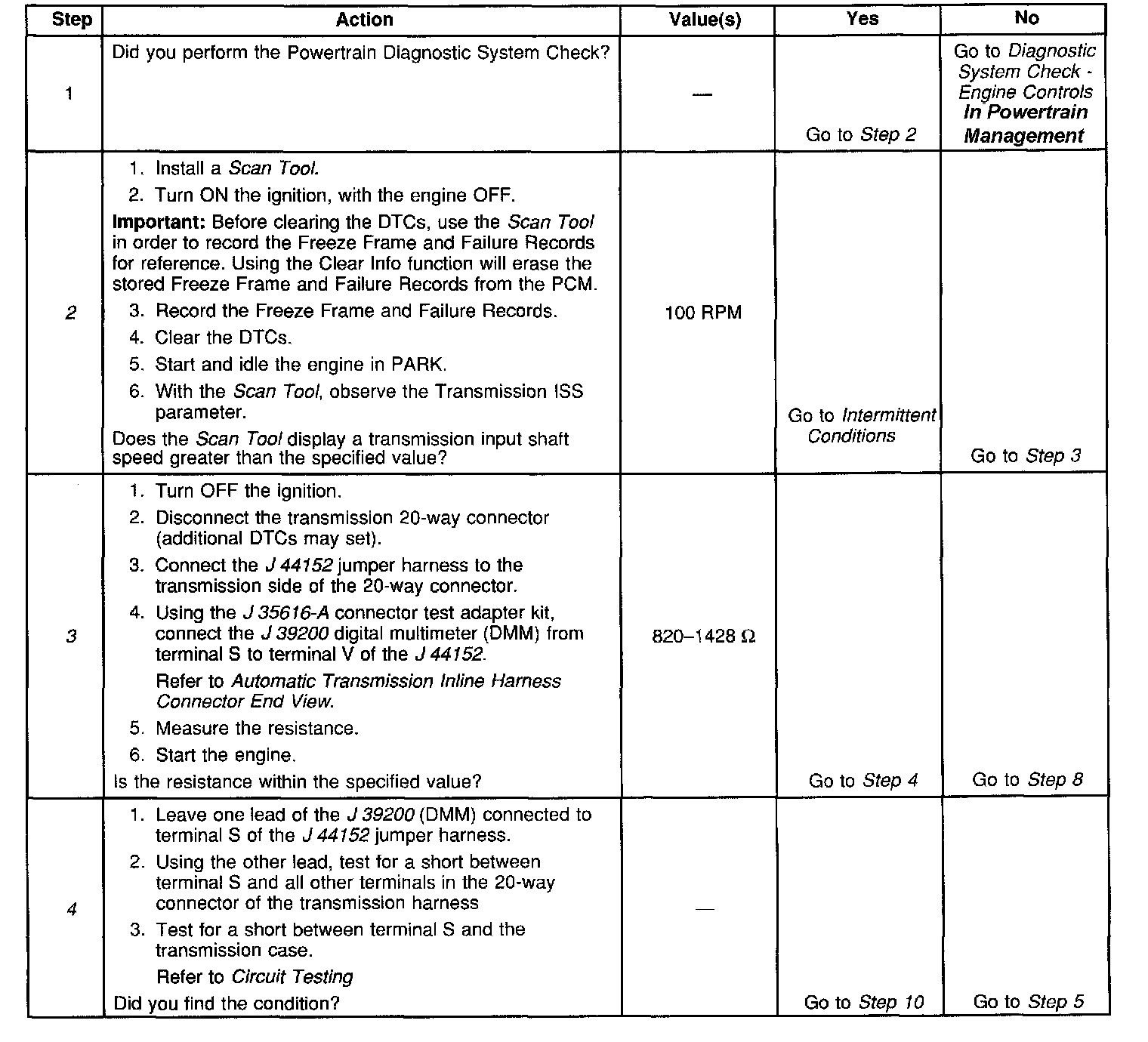

The numbers below refer to the step numbers on the diagnostic table.
2. This step checks if the PCM receives a signal from the AT ISS sensor.
3. A Yes answer indicates that the transmission side of the circuit is functioning properly.
4. Although the resistance is within specification in Step 3, there may be a short to ground or short to power condition.

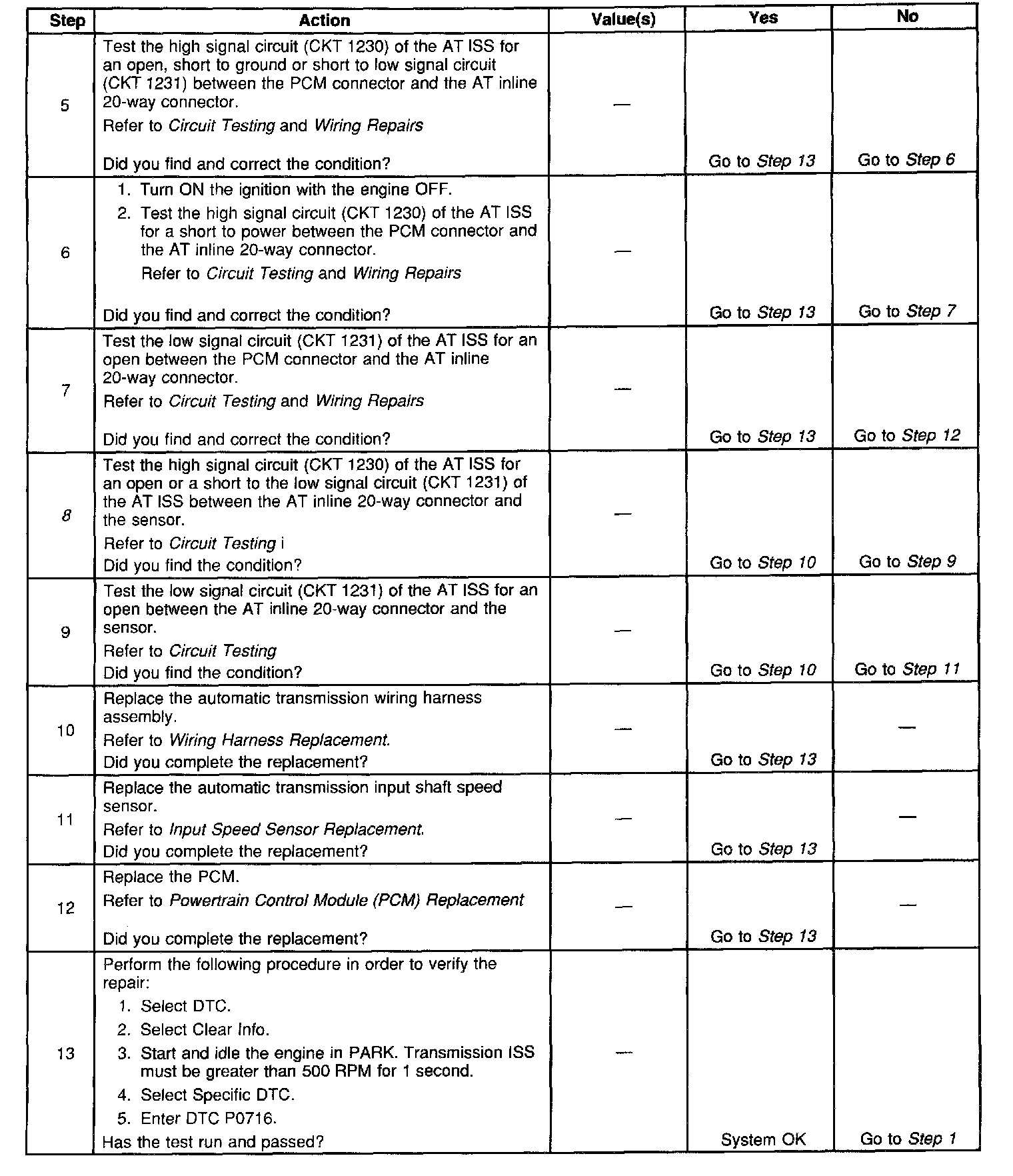

8. This step begins the transmission harness diagnosis.
