P0112

CIRCUIT DESCRIPTION
The Intake Air Temperature (IAT) sensor is a thermistor or a variable resistor that measures the temperature of the air entering the engine. The Powertrain Control Module (PCM) supplies 5 volts to the IAT signal circuit through a pull-up resistor. When the intake air is cold, the PCM detects a high voltage on the IAT signal circuit. As the intake air warms, the PCM detects a lower voltage on the IAT signal circuit. If the PCM detects an excessively low IAT signal voltage (high temperature indicated), Diagnostic Trouble Code (DTC) P0112 will set.

CONDITIONS FOR RUNNING THE DTC
^ DTCs P0117, P0118, P0125, P0502, P0503, P1114, or P1115 are not set.
^ The engine has been running for at least 10 seconds.
^ The engine coolant temperature is below 100°C (212°F).
^ The vehicle speed is more than 15 km/h (9 mph).

CONDITIONS FOR SETTING THE DTC
^ The IAT sensor signal voltage is less than 0.08 volts. This would be approximately 137°C (278°F).
^ The condition exists for less than 1 second.

ACTION TAKEN WHEN THE DTC SETS
^ The control module illuminates the Malfunction Indicator Lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The control module turns OFF the Malfunction Indicator Lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
^ A current DTC "Last Test Failed" clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
^ Use a scan tool in order to clear the MIL and the DTC.

DIAGNOSTIC AIDS
For intermittent conditions, refer to Intermittent Conditions. Intermittent Conditions

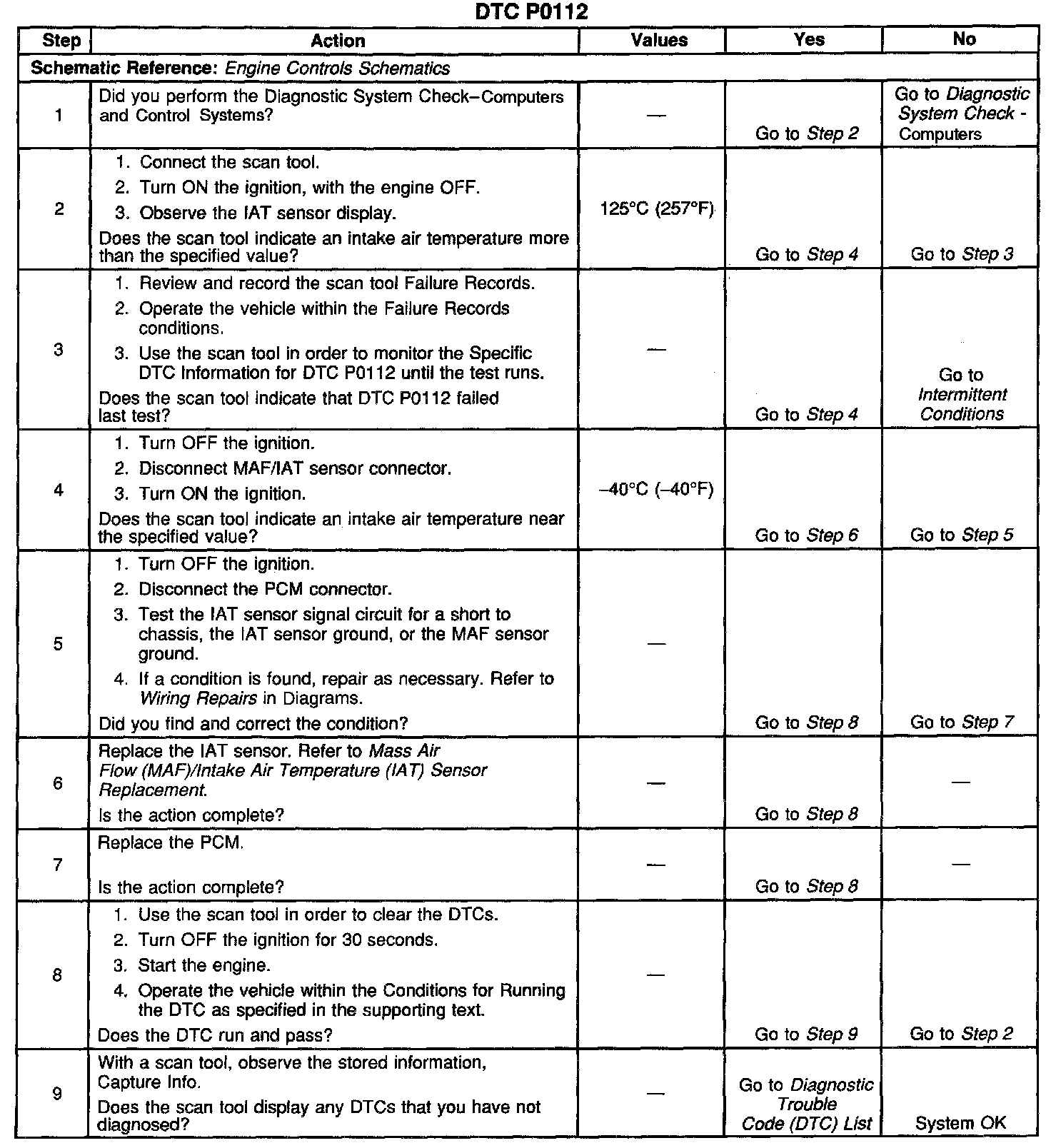

TEST

Steps 1-9:
