C1245

DTC C1245
Circuit Description
The Tire Pressure Monitor (TPM) system, also known as, the Tire Inflation Monitor (TIM) system uses the Electronic Brake Control Module (EBCM), wheel speed sensors, class 2 serial data messages, and instrument cluster in order to perform the system functions.
The EBCM contains the software to perform the system monitoring functions. The EBCM uses wheel speed data obtained from the wheel speed sensors to detect relative pressure differences. Any ABS/TCS system activity causes the EBCM to temporarily suspend the tire inflation monitor system functions.

Conditions for Running the DTC
The vehicle speed is between 24 - 145 km/h (15 - 90 mph).

Conditions for Setting the DTC
One of the following conditions occur:
- The EBCM detects a tire pressure difference of 69 kPa (10 psi).
- The EBCM sets a DTC C1254.
- Loss of battery positive voltage (B+) at the EBCM.
- A battery disconnect or a low battery voltage condition.

Actions Taken When the DTC Sets
The DIC displays the Tire Pressure message.

Conditions for Clearing the DTC
- The condition for the DTC is no longer present (the DTC is not current) and you performed the tire inflation monitoring reset function.
- The condition for the DTC is no longer present (the DTC is not current) and you used the scan tool Clear DTC function.
- The EBCM automatically clears the history DTC when a current DTC is not detected in 100 consecutive drive cycles.

Diagnostic Aids
Any of the following conditions can cause this DTC.
- One or more of the vehicle's tires is under inflated.
- One or more of the vehicle's tires is over inflated.
- The tire pressures have been altered without resetting the TIM.
- The tires have been rotated or changed without resetting the TIM.
- The tires are different in size than the original equipment manufacturer's.
- Rough or slippery road conditions (dirt, gravel, wet, snow, or ice).
- The tires are out of balance.
- Loss of battery positive voltage (B+) at the EBCM.
- A battery disconnect or a low battery voltage condition.
- Water intrusion into a wheel speed sensor connector (test connectors using J42675 Flat Wire Probe Adapter Kit to avoid connector damage).
- A suspension condition (i.e. the vehicle is out of alignment)

Test Description
The number below refers to the step number on the diagnostic table.

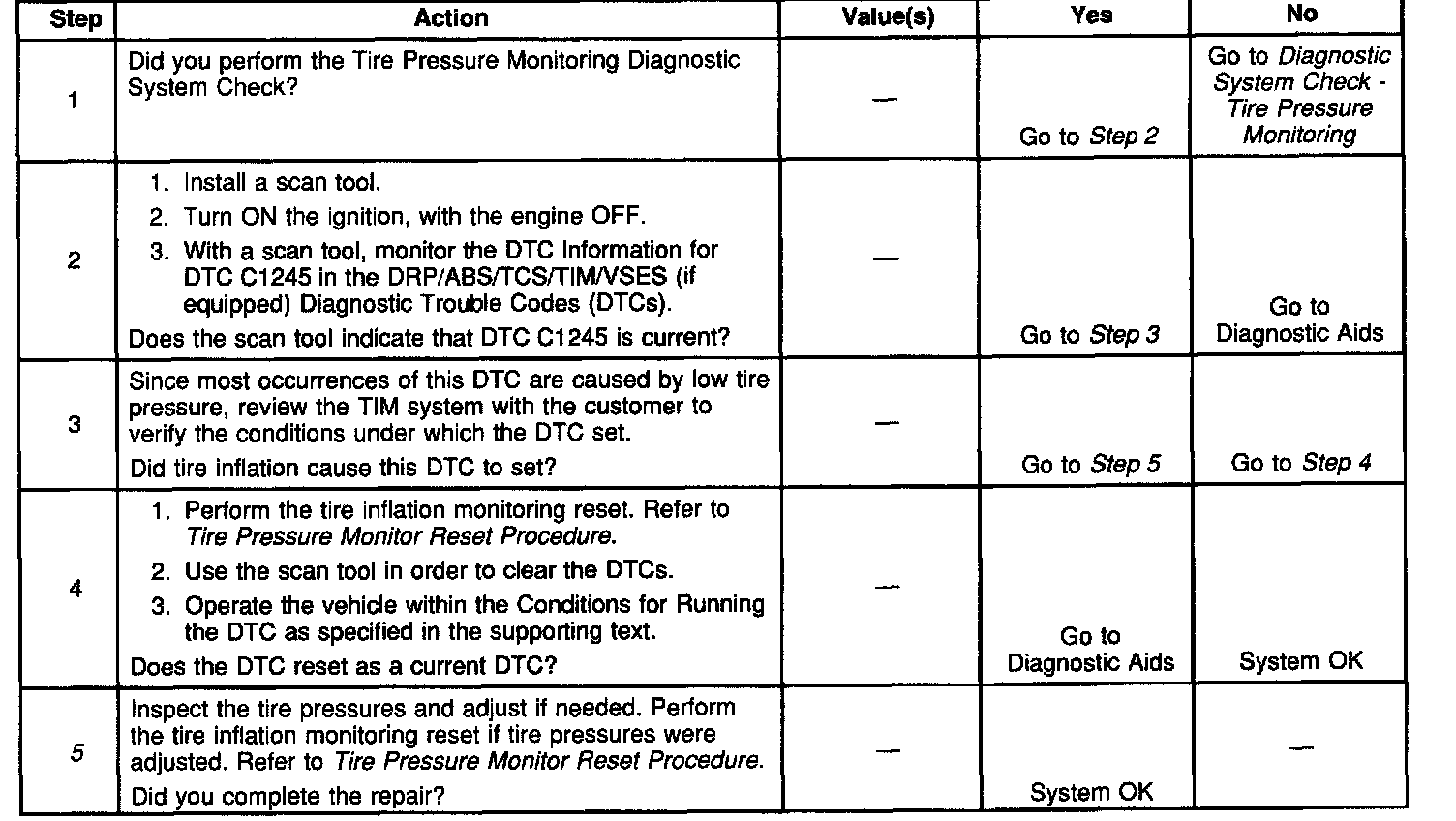

5. This step inspects the tires for proper tire pressures.






DTC C1245
