HVAC Systems - Automatic Diagnosis

CIRCUIT DESCRIPTION
The Instrument Panel Integration Module (IPM) communicates with the HVAC control module via the Driver HVAC Control Assembly Signal and Clock Signal data bus. This communication link is only used by the IPM and the HVAC control module.

CONDITIONS FOR RUNNING THE DTC
The ignition is turned ON.

CONDITIONS FOR SETTING THE DTC
^ There is a loss of communications between the IPM and the HVAC control module.
^ The above conditions are present for 3 seconds.

ACTION TAKEN WHEN THE DTC SETS
The heater and A/C system will be disabled.

CONDITIONS FOR CLEARING THE DTC
^ The DTC will become history if the IPM no longer detects a failure.
^ The history DTC will clear after 50 fault free ignition cycles.
^ The DTC can be cleared with a scan tool.

TEST DESCRIPTION

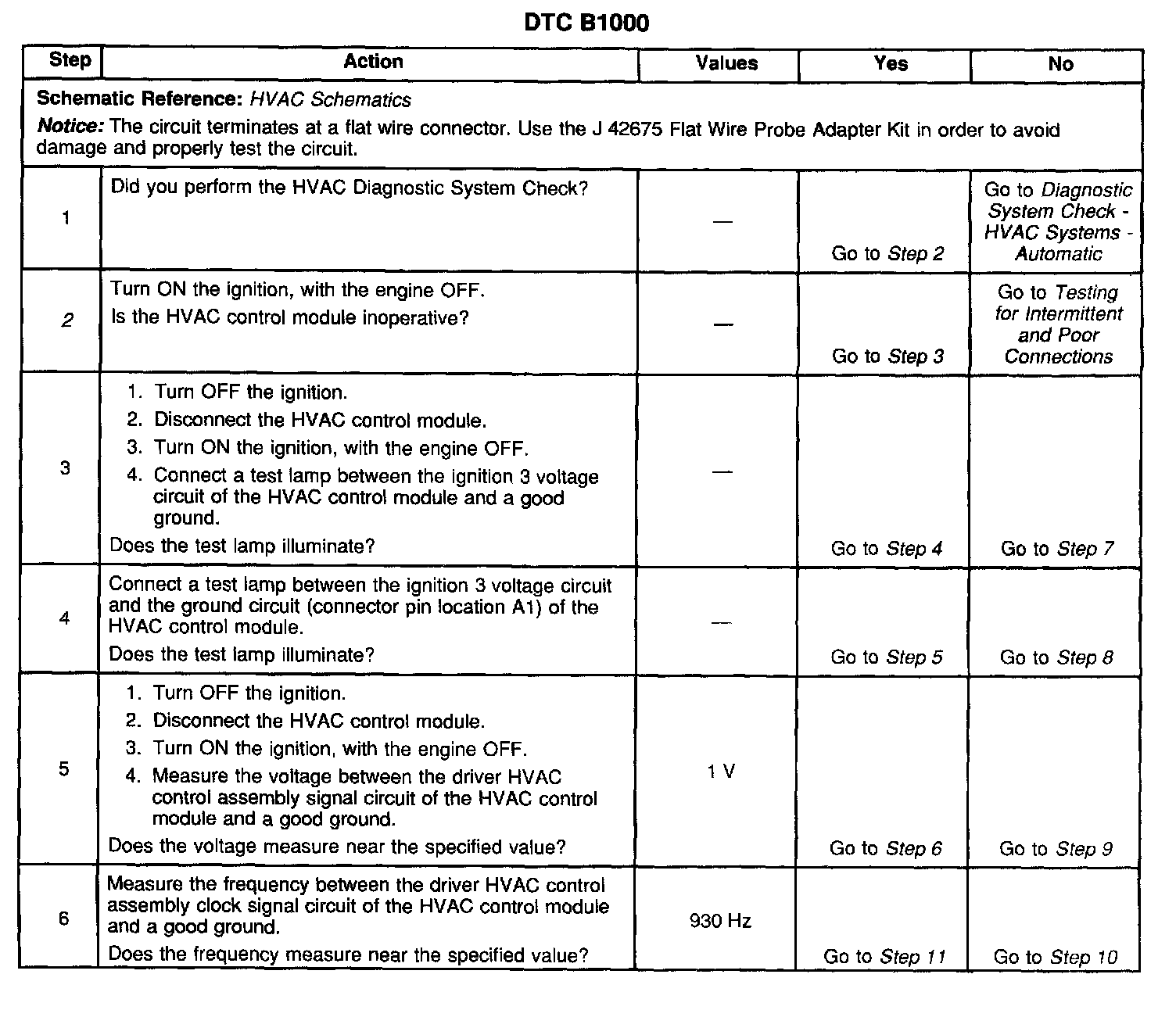

Steps 1-6:

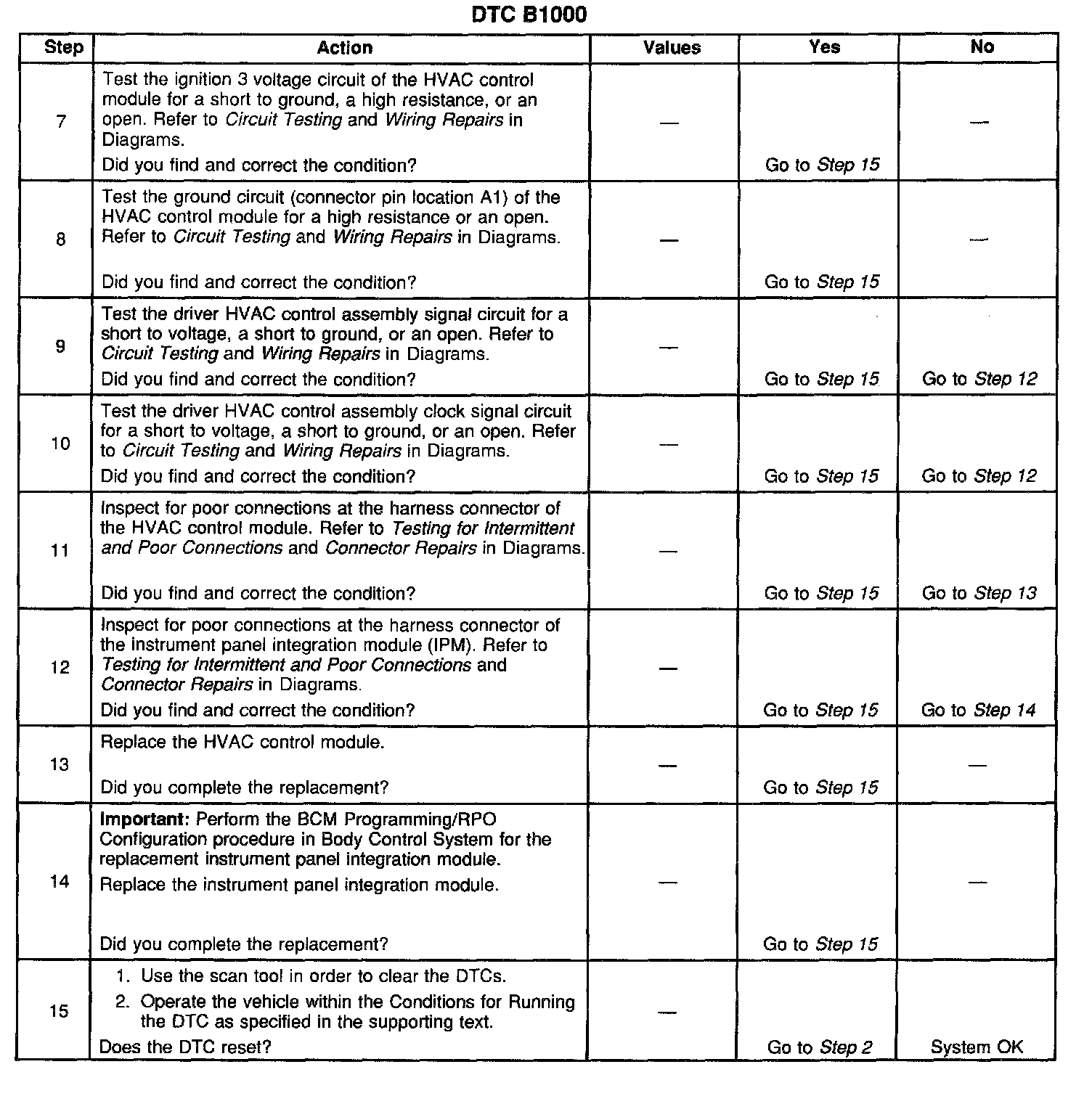

Steps 7-15:

The numbers below refer to the step numbers on the diagnostic table.
2. The HVAC control module is inoperative when the module does not respond to any operator control requests.
