Home >> Oldsmobile >> 2001 >> Alero V6-3.4L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Connector Views >> HVAC Control Assembly, C2

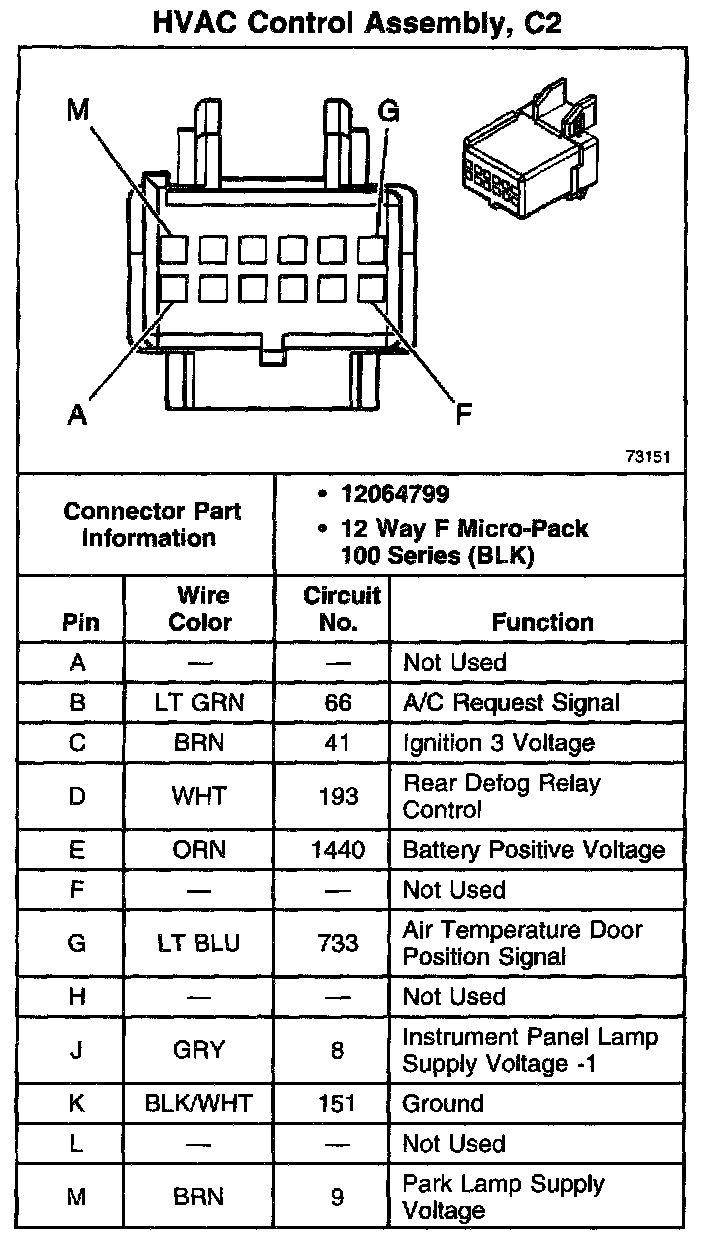

HVAC Control Assembly, C2

HVAC Control Assembly, C2:
