Passlock Sensor, SP205 and ETC Switch

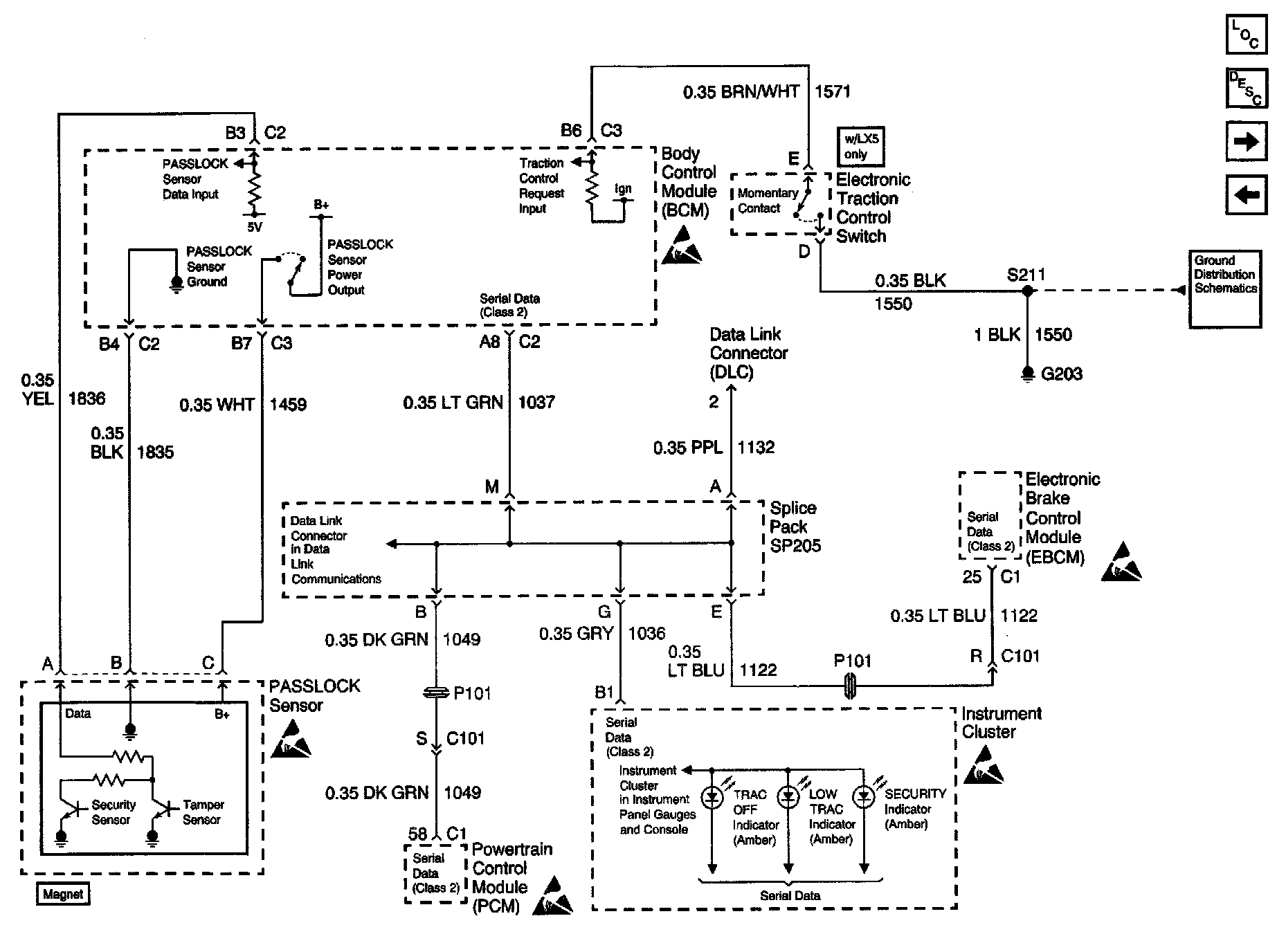

Body Control Module Schematics: PASSLOCK Sensor, SP205 And ETC Switch:
