Home
>>
Oldsmobile
>>
1999
>>
Regency V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Relays and Modules - HVAC
>>
Control Module HVAC
>>
Locations
>>
HVAC System - Automatic
>>

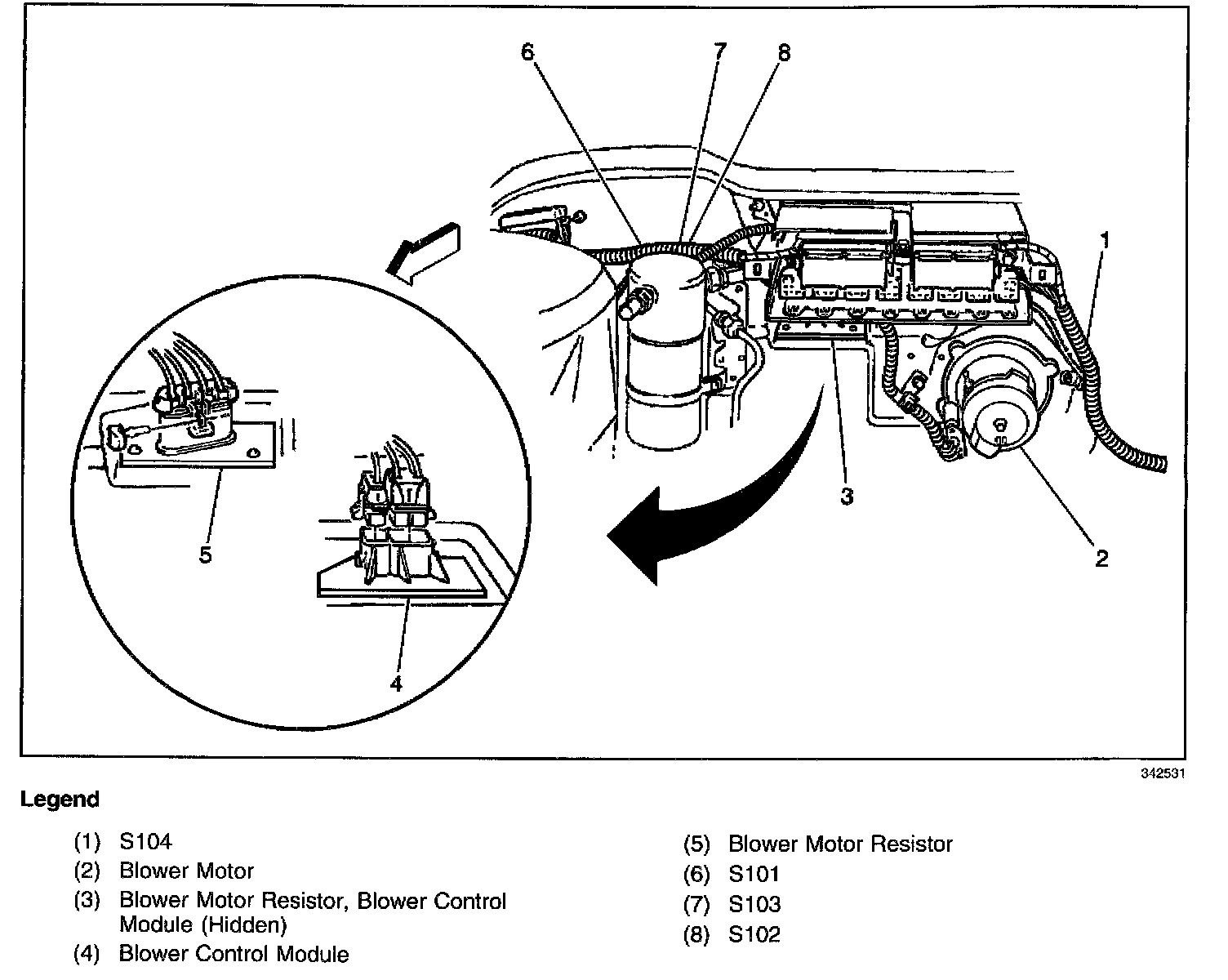

Blower Motor Control Module
Blower Motor Control Module
Engine Compartment, Right Rear Corner:
Engine Compartment, Right Rear Corner:
In the center rear of the engine compartment, below the right side MaxiFuse(R) block
