Wiper Motor Cover Replacement

REMOVAL PROCEDURE




TOOLS REQUIRED
J 39232 Wiper Transmission Separator

1. Remove the wiper arm assemblies from the vehicle.
2. Remove the air inlet grille panel from the vehicle.
3. Remove the connector from the wiper motor.

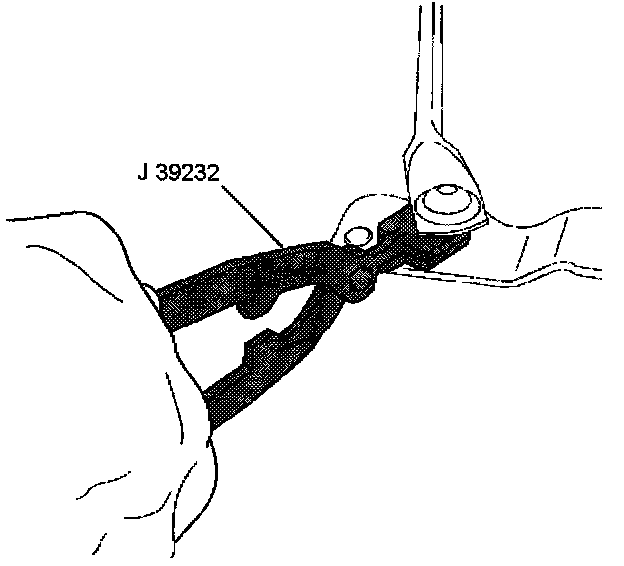

4. Remove the wiper transmission from wiper motor crank arm using the J 39232 Wiper Transmission Separator.




5. Remove three screws and the wiper drive system module from the vehicle.




6. Remove three screws and the pulse circuit board and the cover from the wiper motor.

INSTALLATION PROCEDURE




TOOLS REQUIRED
J 39529 Wiper Transmission Installer

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the pulse circuit board and cover on the wiper motor with three screws.

Tighten
Tighten screws to 2 N.m (18 lb in).





NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the wiper drive system module on the vehicle with three screws.

Tighten
Tighten screws to 10 N.m (88 lb in).




3. Install the wiper transmission on the wiper motor crank arm using the J 39529 Wiper Transmission Installer.
4. Install the connector to the wiper motor.
5. Install the air inlet grille panel on the vehicle.
6. Install the wiper arm assemblies on the vehicle.
7. Operate the wipers and check for proper operation.
