Rear Door Window Regulator: Service and Repair

REMOVAL PROCEDURE




1. Remove the rear door inner trim panel.
2. Remove the rear door water deflector.
3. Tape the rear door window in the full up position.

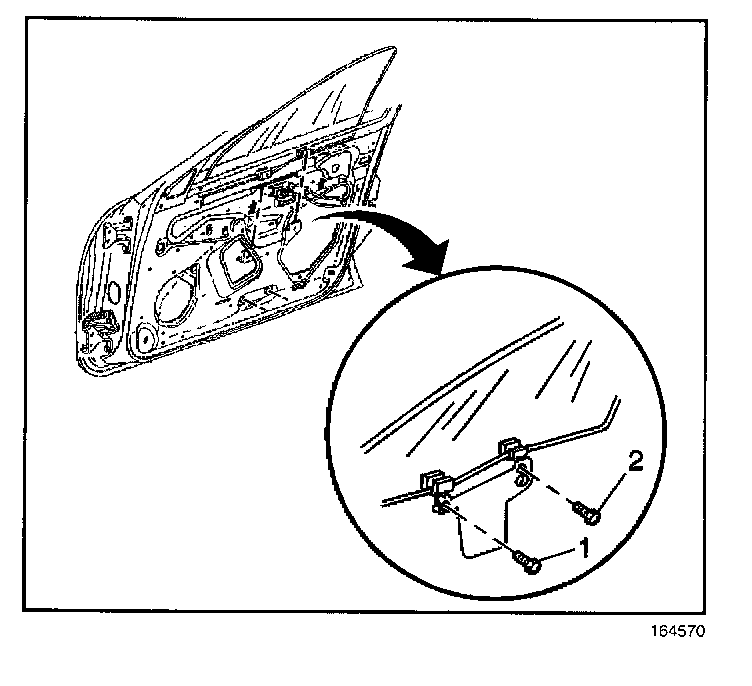

4. Remove the window to window regulator bolts (1,2).




5. Disconnect the electrical connector from the regulator motor.

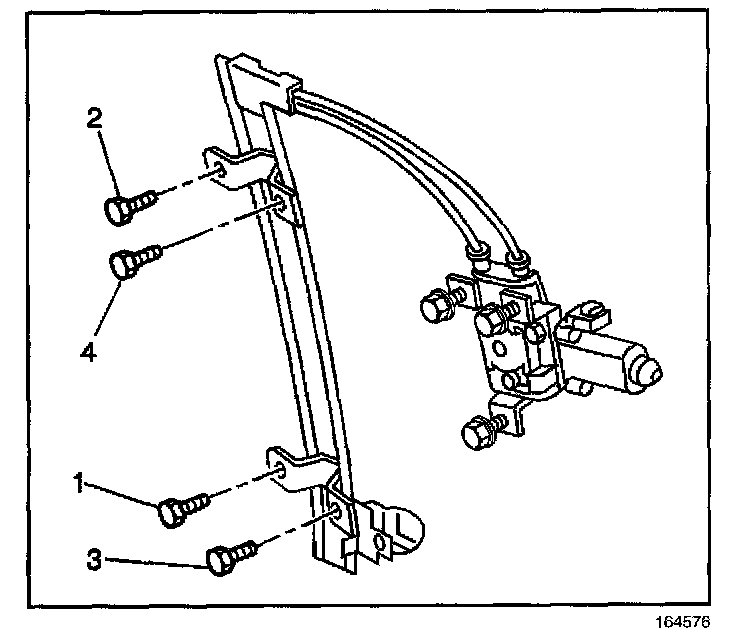

6. Remove the window regulator to door bolts (1,2,3,4).
7. Remove the window regulator motor mounting bolts.

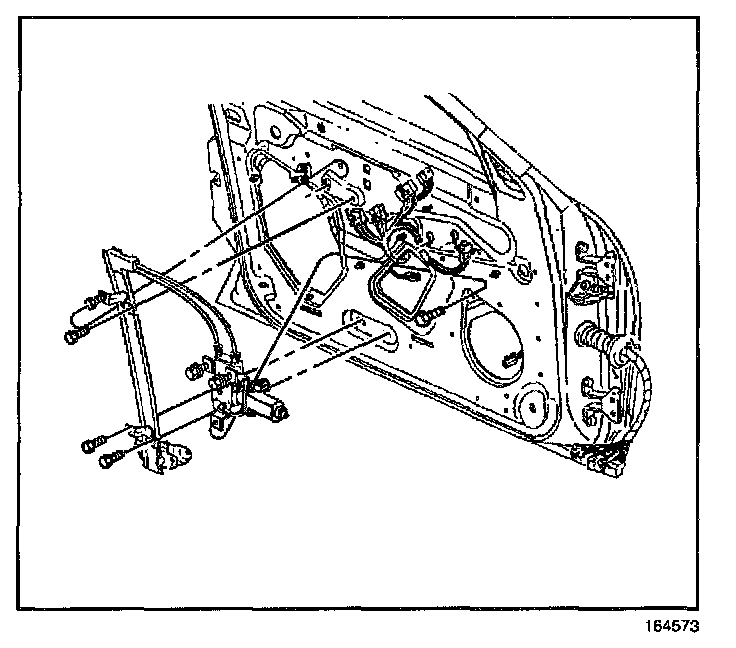

8. Remove the window regulator from the door.

INSTALLATION PROCEDURE

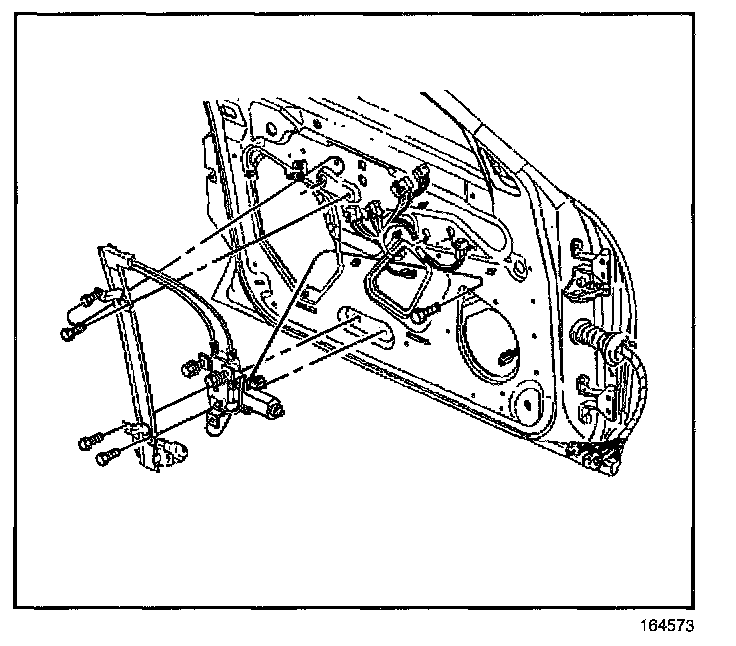

1. Position the window regulator to the door.

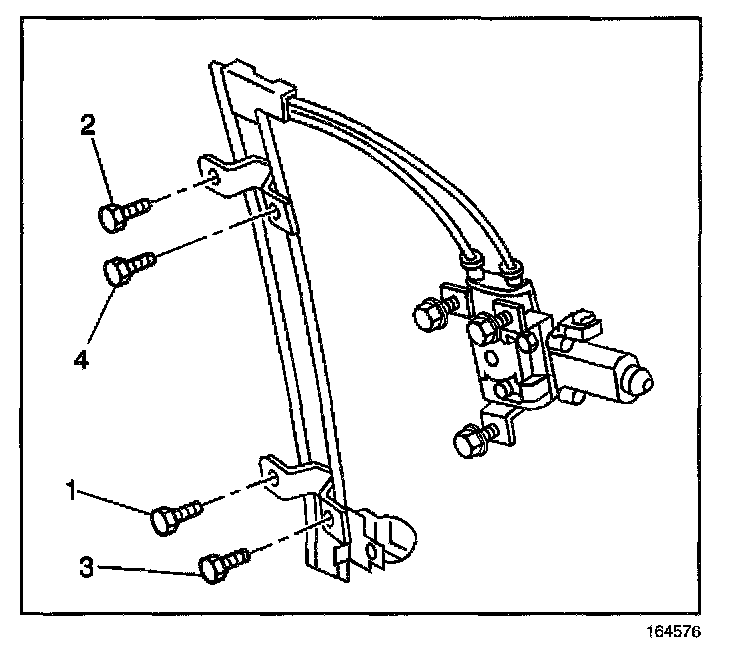

2. Install the window regulator to door bolts (1,2,3,4).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Tighten the regulator to door bolts in the following sequence.
3.1. Lower rear (1)
3.2. Upper rear (2)
3.3. Lower front (3)
3.4. Upper front (4)

Tighten
Tighten the window regulator to door bolts to 10 N.m (89 lb in).

4. Install the three window regulator motor mounting bolts.

Tighten
Tighten the window regulator motor bolts to 10 N.m (89 lb in).




5. Connect the electrical connector.
6. Remove the tape from the front door window and lower the window onto the window regulator carrier plate.

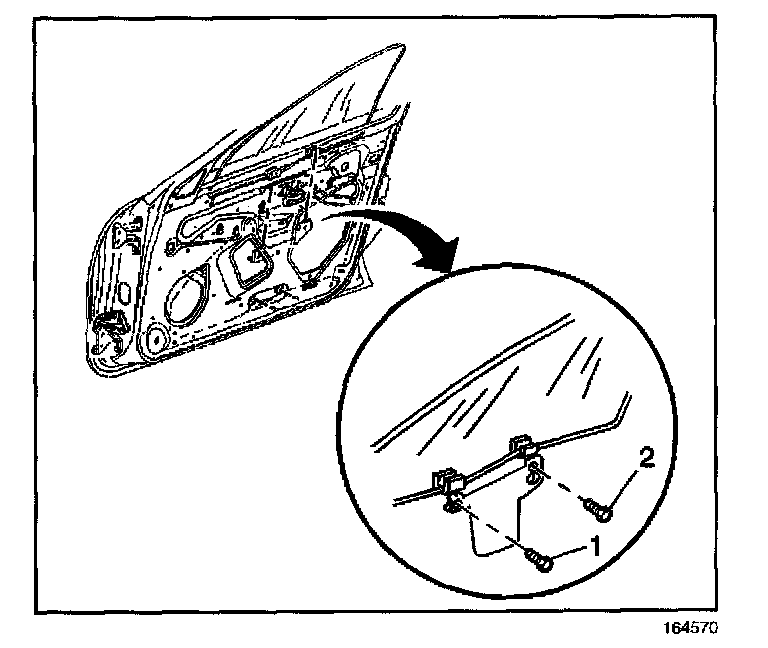

7. Install the window to window regulator bolts.
8. Install the rear door water deflector.
9. Install the rear door inner trim panel.
