Front Door Window Regulator: Service and Repair

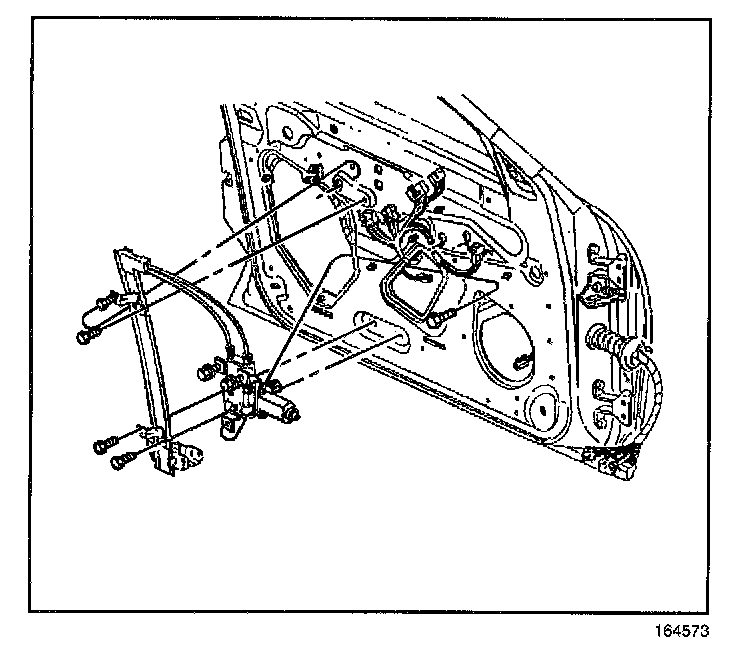

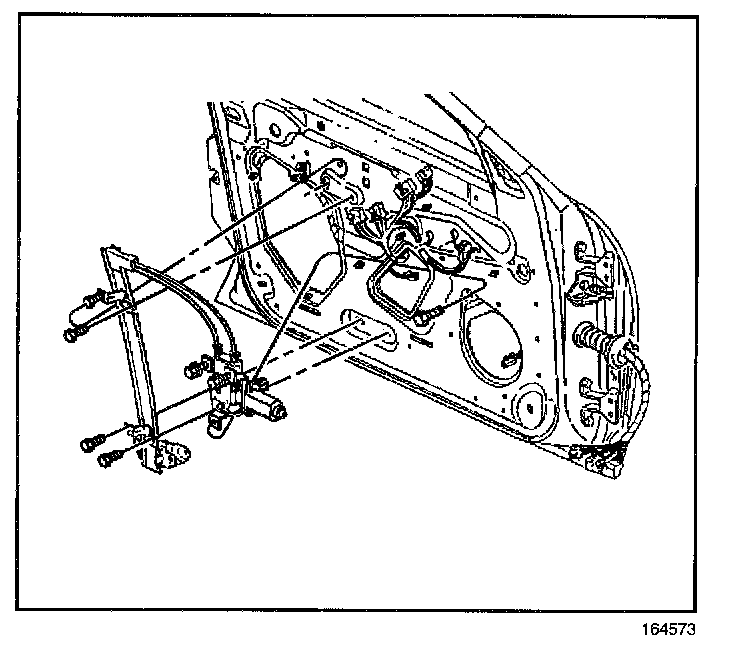

REMOVAL PROCEDURE





1. Remove the door trim panel.
2. Remove the water deflector.
3. Raise and tape the window in the full up position.
4. Disconnect the electrical connector.
5. Remove the window to regulator bolts.

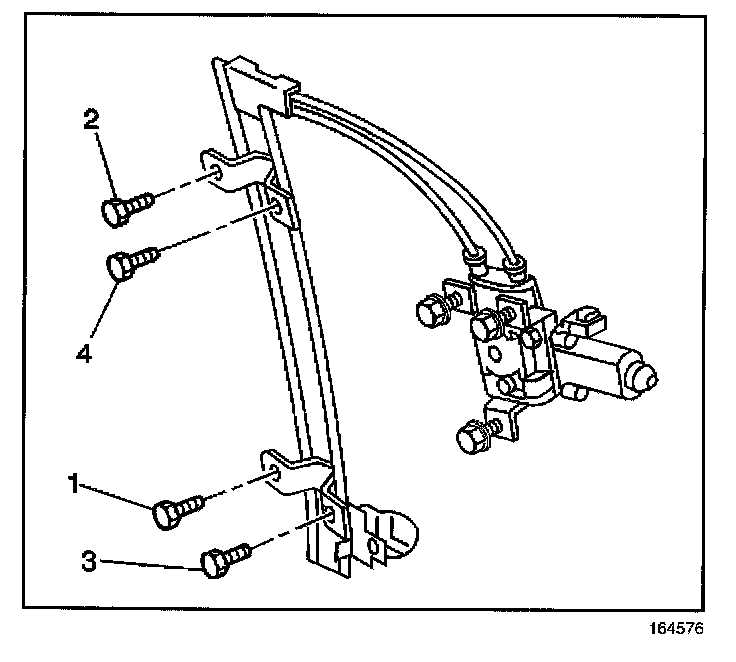

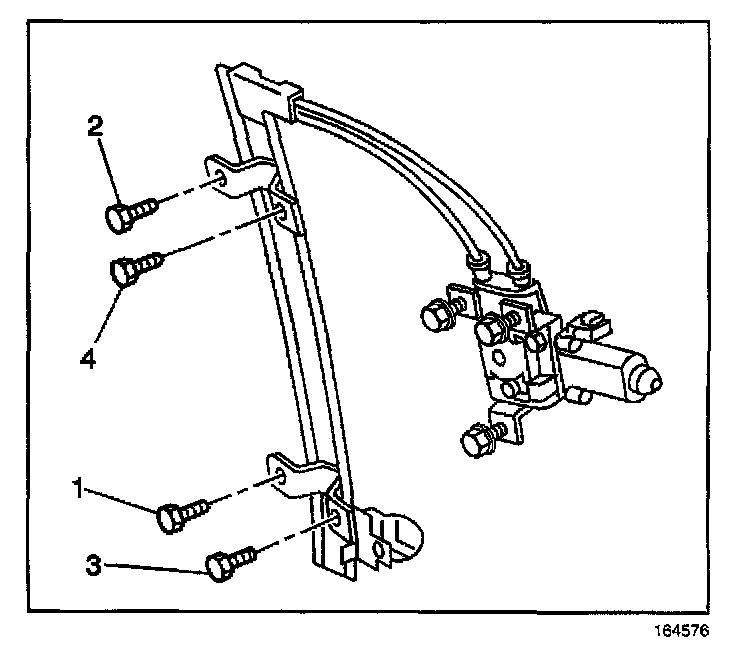

Remove the regulator to door mounting bolts (1,2,3,4).
6. Remove the regulator motor mounting bolts.





7. Remove the regulator from the door.

INSTALLATION PROCEDURE





1. Install the regulator to the door.

NOTE: Refer to Fastener Notice in Service Precautions.





2. Install the window regulator to door mounting bolts in the following sequence.
2.1. Lower rear(1)
2.2. Upper rear (2)
2.3. Lower front (3)
2.4. Upper front (4)

Tighten
Tighten the window regulator to door bolts to 10 N.m (89 lb in).

3. Install the three window regulator motor mounting bolts.

Tighten
Tighten the window regulator motor bolts to 10 N.m (89 lb in).

4. Connect the electrical connector.
5. Remove the tape from the front door window and lower the window onto the window regulator carrier plate.
6. Install the window to regulator bolts.
7. Install the front door water deflector.
8. Install the front door inner trim panel.
