Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Regulator >> Diagrams >> Window Regulator Motor, Left Front Door

Window Regulator Motor, Left Front Door

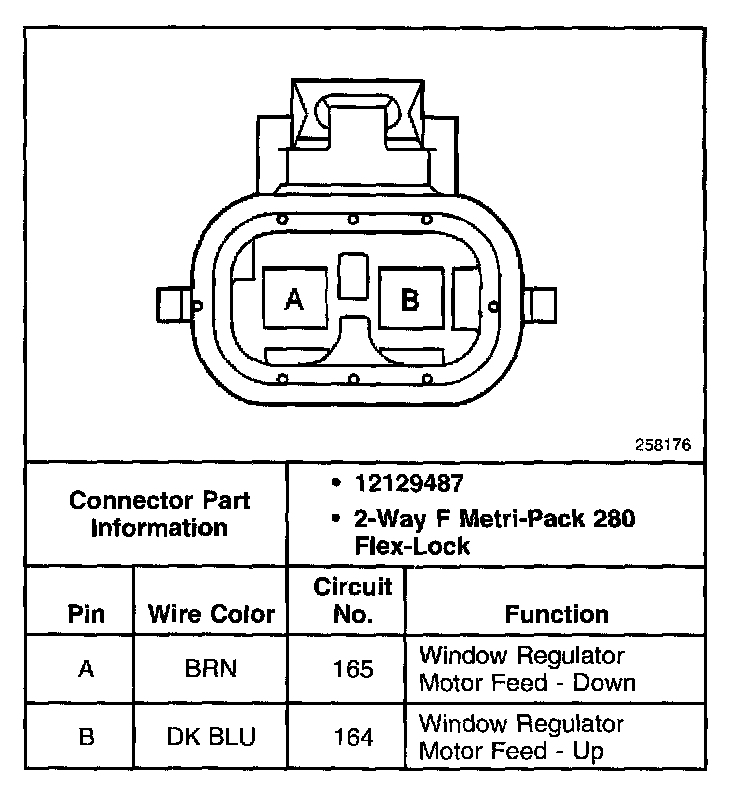

Window Regulator Motor - Left Front:
