TFP Manual Valve Position Switch Resistance Check

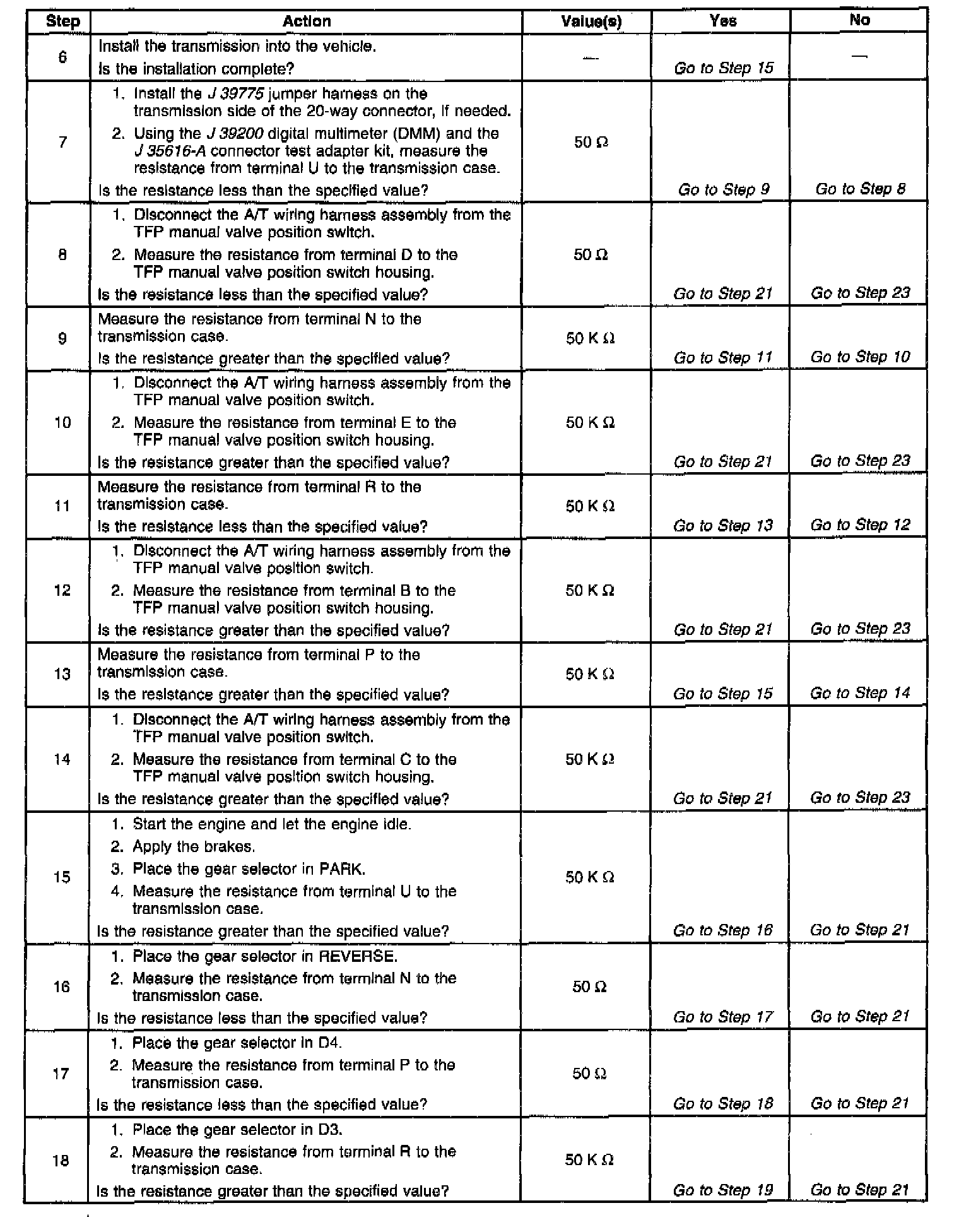

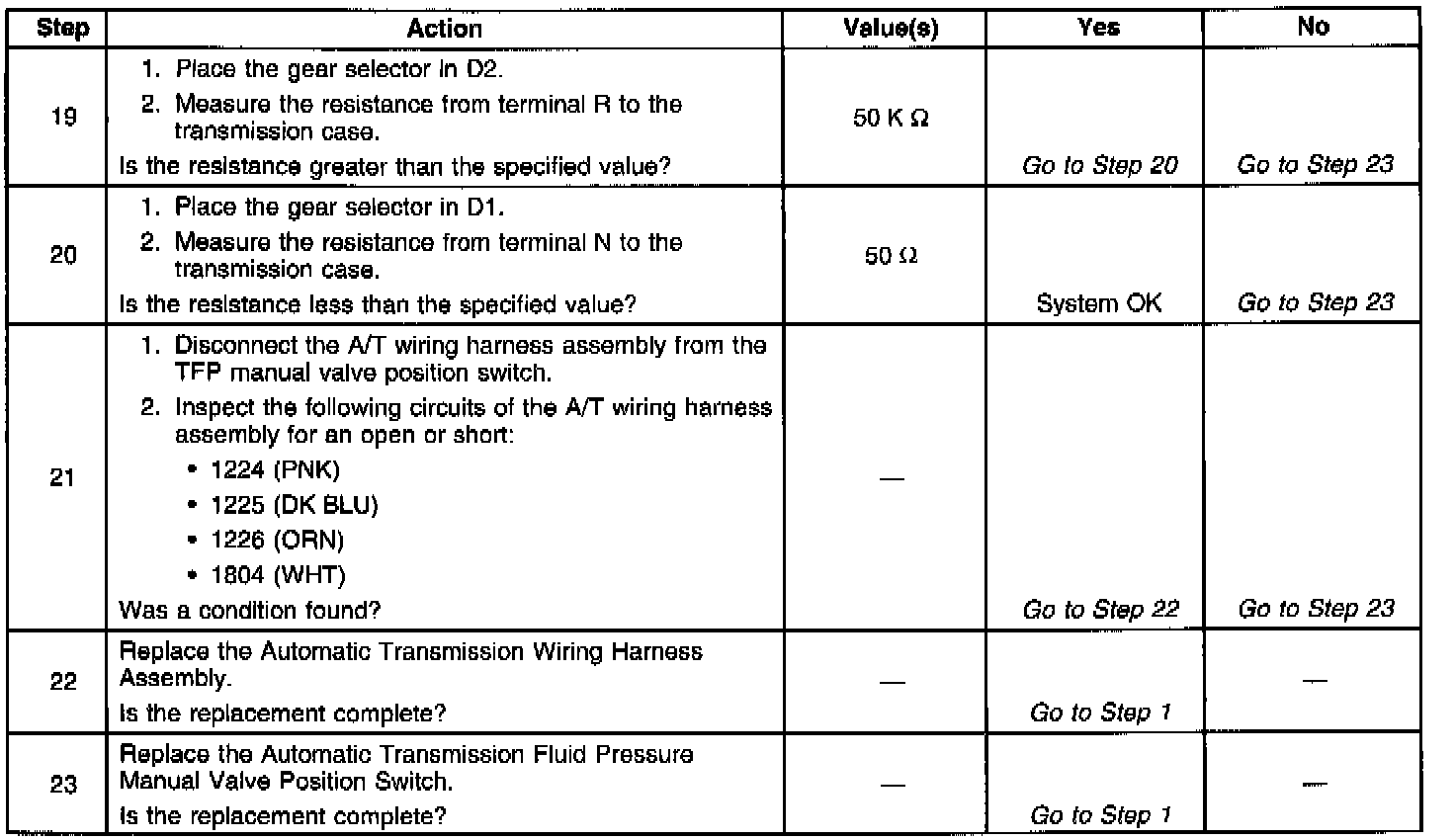

TRANSMISSION FLUID PRESSURE (TFP) MANUAL VALVE POSITION SWITCH RESISTANCE CHECK
