Electrical Connector Replacement

Removal Procedure





1. Remove the case side cover. Refer to Case Side Cover Replacement.

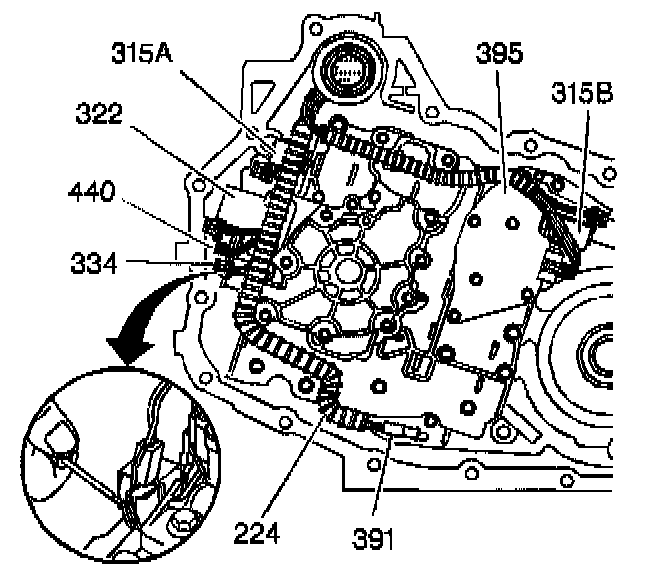

2. Disconnect the wiring harness assembly (224) from the following components:
^ TFP manual valve position switch (395)
^ 1-2 shift solenoid (315A)
^ 2-3 shift solenoid (315B)
^ Torque converter clutch PWM solenoid (334)
^ Pressure control solenoid (322)
^ Input speed sensor (440)
^ Fluid temperature sensor (391) Wiring harness clips

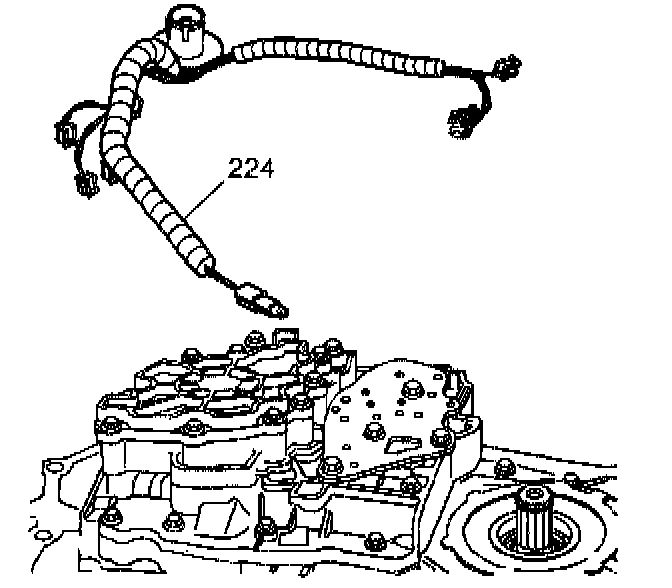

3. Remove the wiring harness assembly (224).

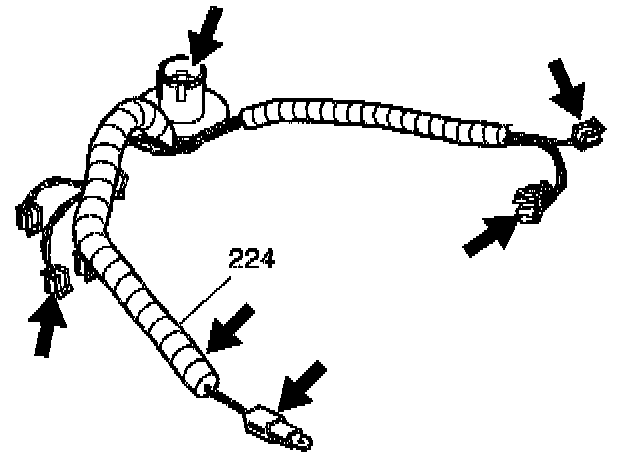

4. Inspect the wiring harness assembly (224) for:
^ Cut or pinched wires
^ Cut wire insulation
^ Bent or broken electrical connections
^ Damaged terminal pins


Installation Procedure

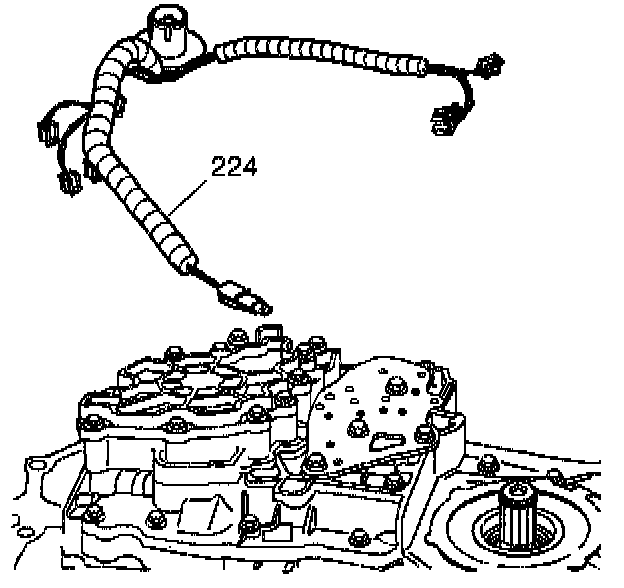

1. Install the wiring harness assembly (224).

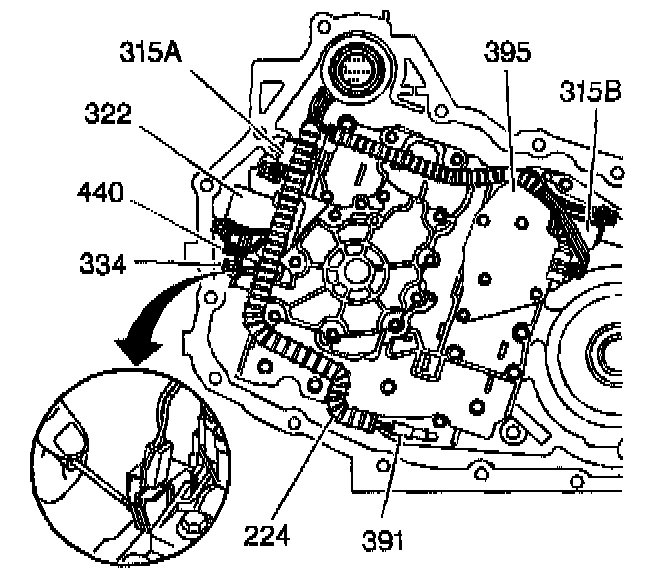

2. Connect the wiring harness assembly (224) to the following components:
^ TFP manual valve position switch (395)
^ 1-2 shift solenoid (315A)
^ 2-3 shift solenoid (315B)
^ Torque converter clutch PWM solenoid (334)
^ Pressure control solenoid (322)
^ Input speed sensor (440)
^ Fluid temperature sensor (391)
^ Wiring harness clips
3. Install the case side cover. Refer to Case Side Cover Replacement.
