35. Case Components Disassemble
35. Case Components Disassemble
1.

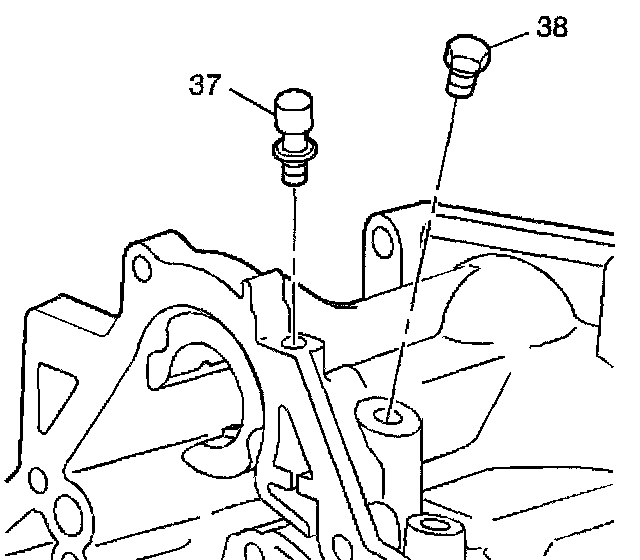

Check to see if the vent is damaged or plugged. If so, use channel locks and a large screwdriver in order to remove the vent assembly (37).
2.
Remove the oil pressure test hole plug (38).
