SIR Steering Wheel Module Coil - Disassemble

DISASSEMBLY PROCEDURE





1. Remove the upper and lower shrouds. Refer to Steering Column Trim Covers - Disassemble -Off Vehicle.

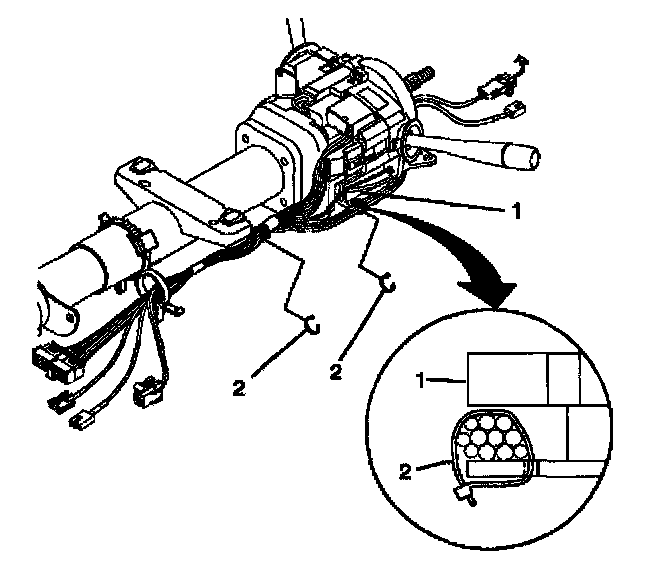

2. Remove 1 wire harness straps (2) from the wire harness assembly.
Remove 1 wire harness strap (2) from the upper tilt head assembly (1).





3. Pop the wire harness assembly (1) out of the wire harness strap (2).

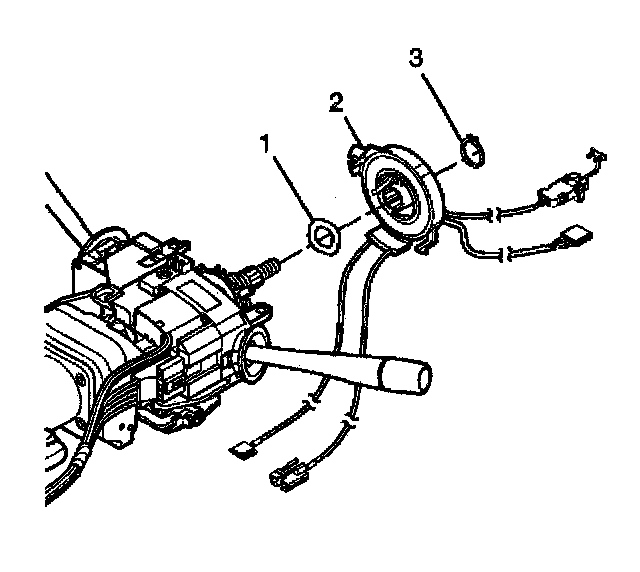

4. Remove the retaining ring (3).
5. Remove the SIR coil assembly (2).
6. Remove the wave washer (1).
