C2

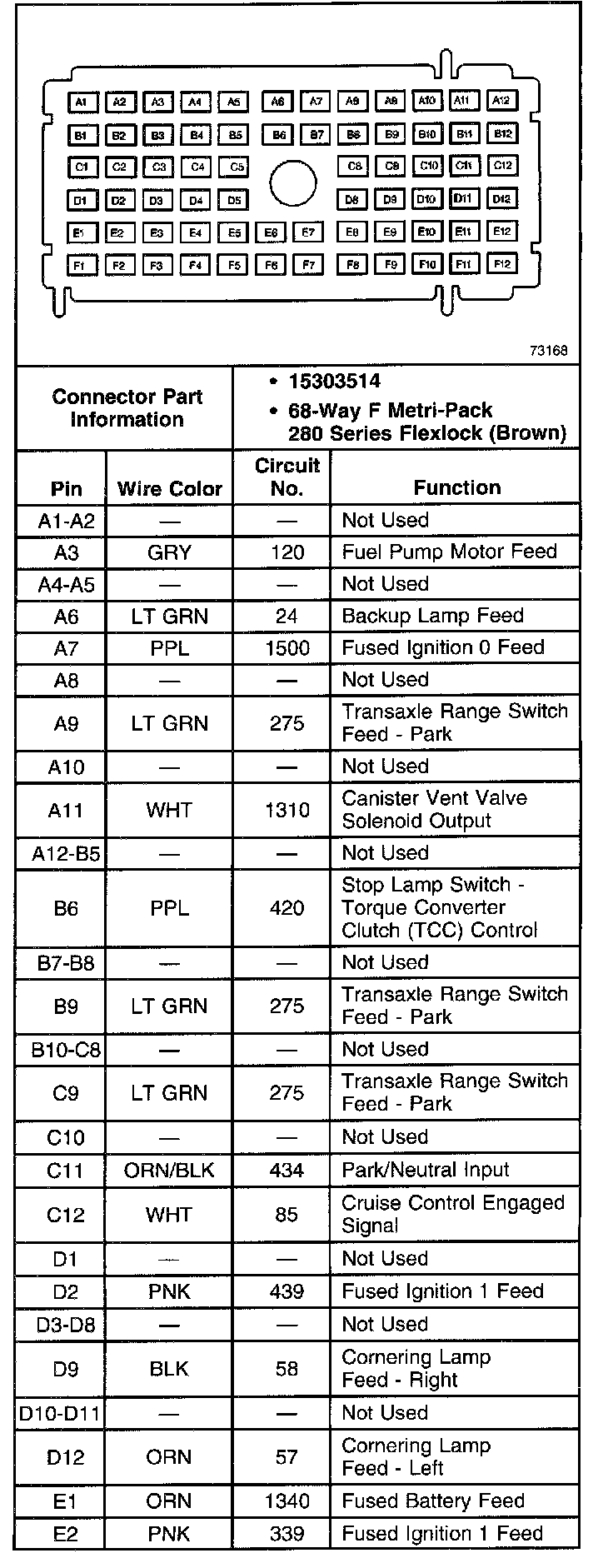

Underhood Accessory Wiring Junction Block C2 (Part 1 Of 2):

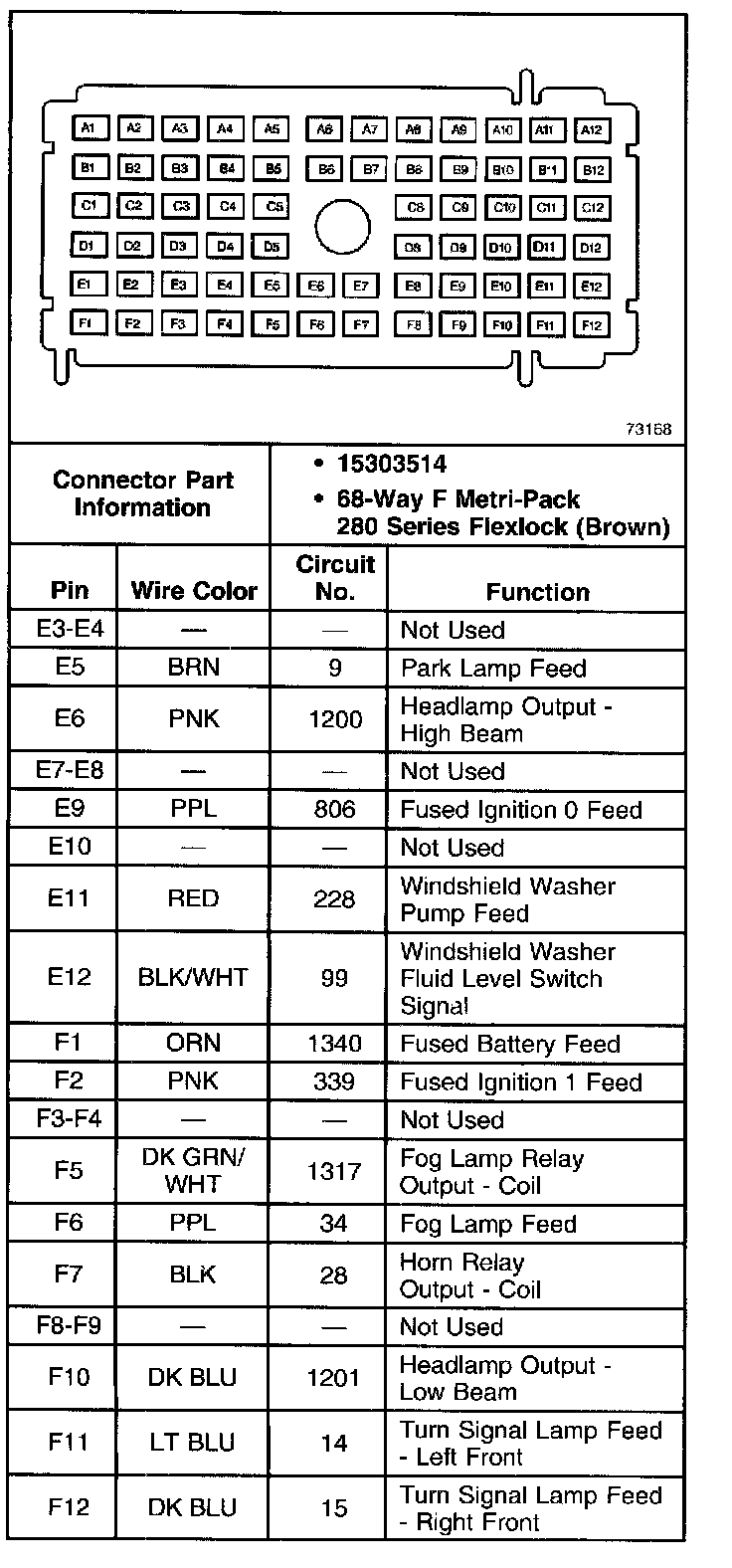

Underhood Accessory Wiring Junction Block C2 (Part 2 Of 2):
