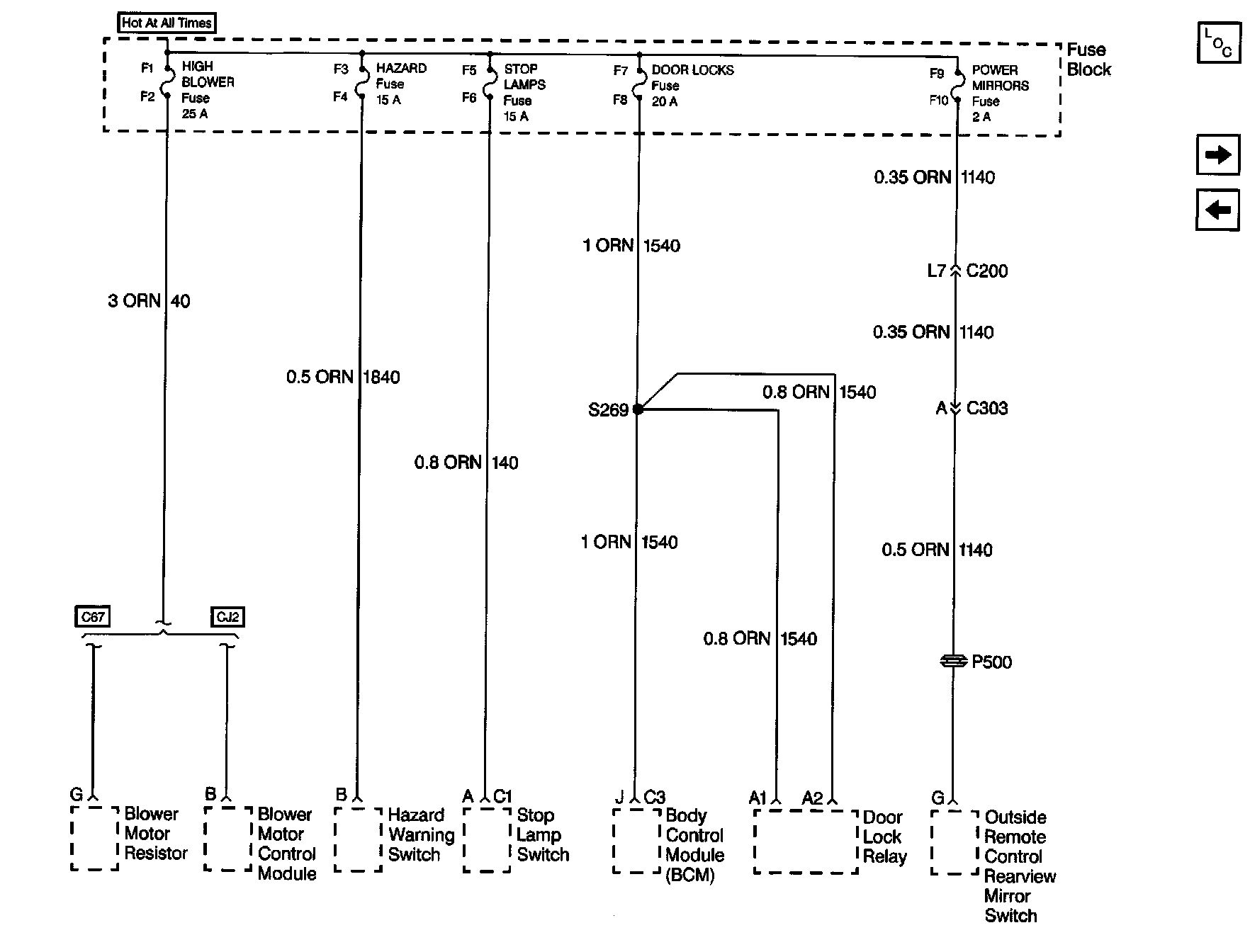

Power Distribution Schematics: DOOR LOCKS, HAZARD, HIGH BLOWER, POWER MIRRORS, And STOP LAMPS Fuses:
