HEATED MIRROR

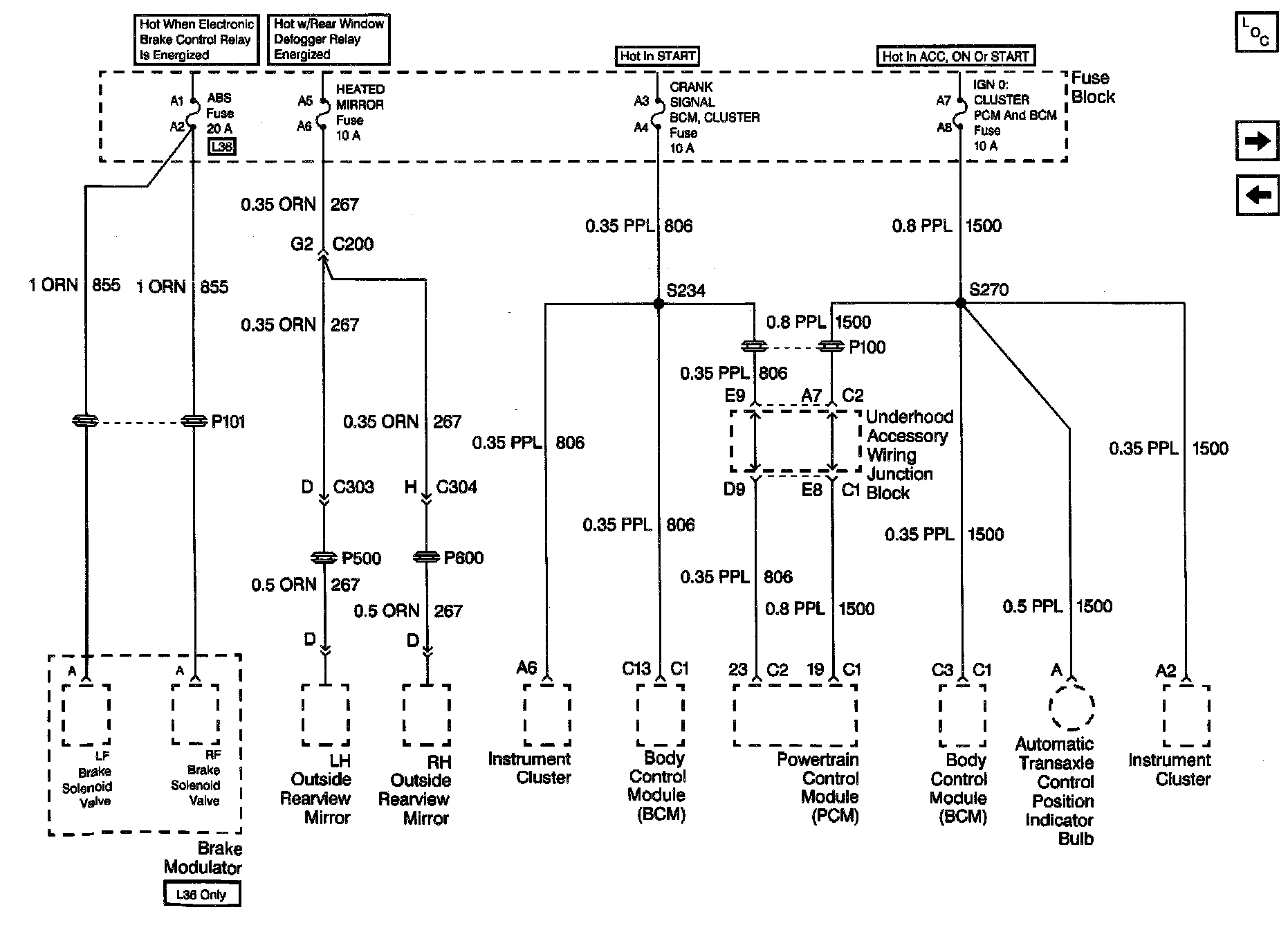

Power Distribution Schematics: ABS, CRANK SIGNAL BCM CLUSTER, HEATED MIRROR, AND IGN 0: CLUSTER PCM & BCM Fuses:
