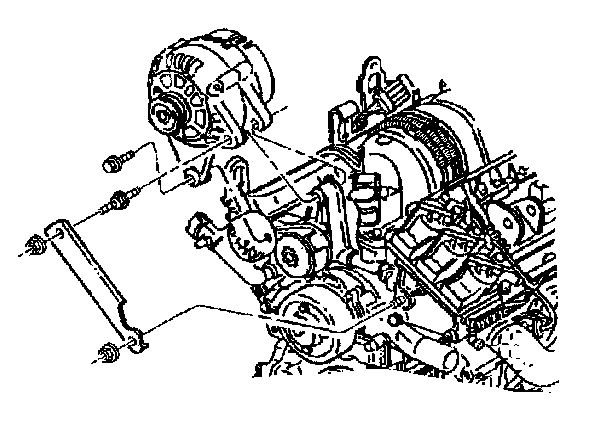

Generator Brace Replacement (Front)

REMOVAL PROCEDURE
1. Remove the generator front brace nuts.
2. Remove the generator front brace from the engine.

INSTALLATION PROCEDURE
1. Install the generator front brace to the engine.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the generator front brace nuts.

Tighten
Tighten the generator front brace nuts to 30 N.m (22 lb ft).
