Battery Tray Replacement

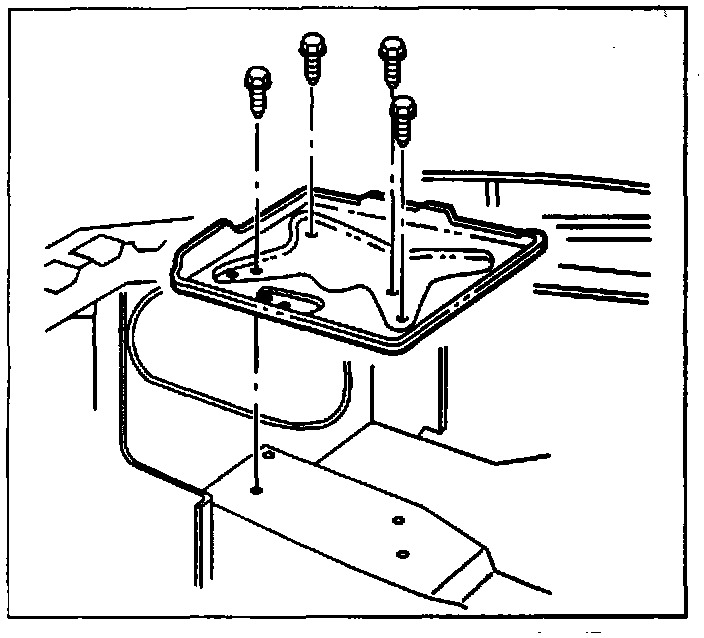

Front Wheelhouse Panel Extension (Battery Tray):

REMOVAL PROCEDURE
1. Remove the battery.
2. Remove the battery tray screws.
3. Remove the battery tray.

INSTALLATION PROCEDURE
1. Install the battery tray.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the battery tray screws.

Tighten
Tighten the battery tray screws to 5 N.m (44 lb in).

3. Install the battery.
