Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Connector Views >> Window Switch, Left Front, C1

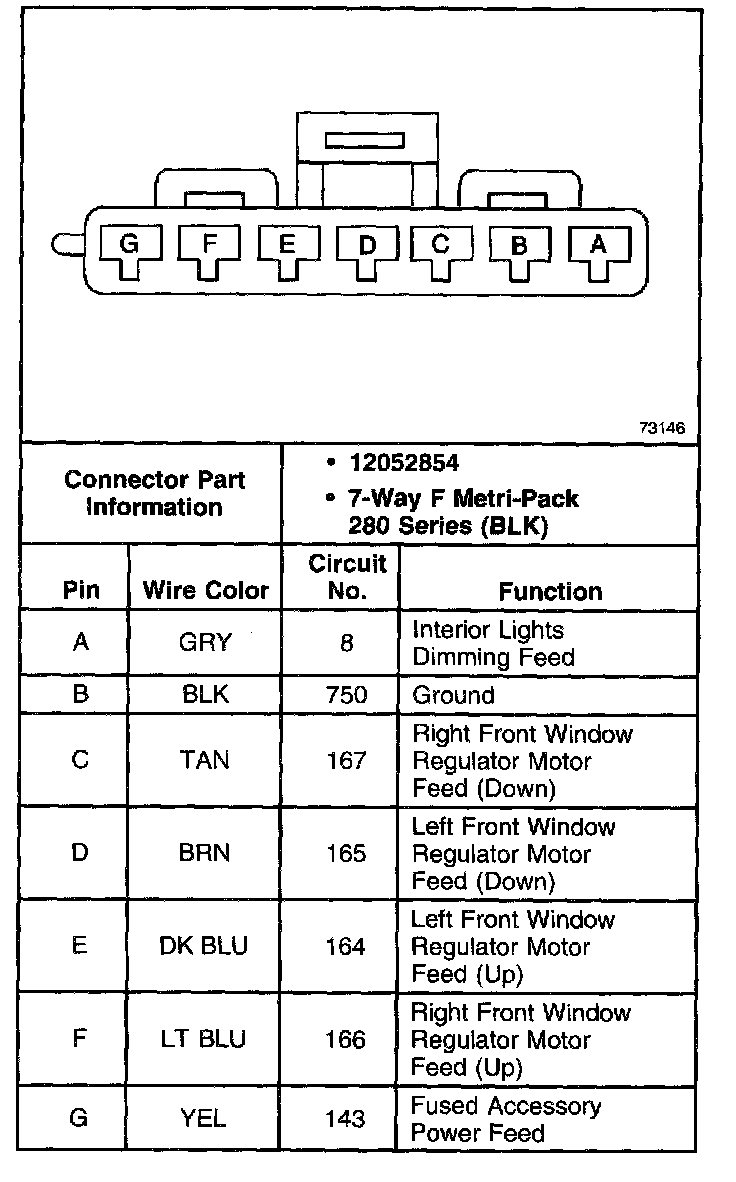

Window Switch, Left Front, C1

Window Switch, Left Front, C1:
