Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Belt Buckle Switch >> Locations >> Seat Belt Switch

Seat Belt Switch

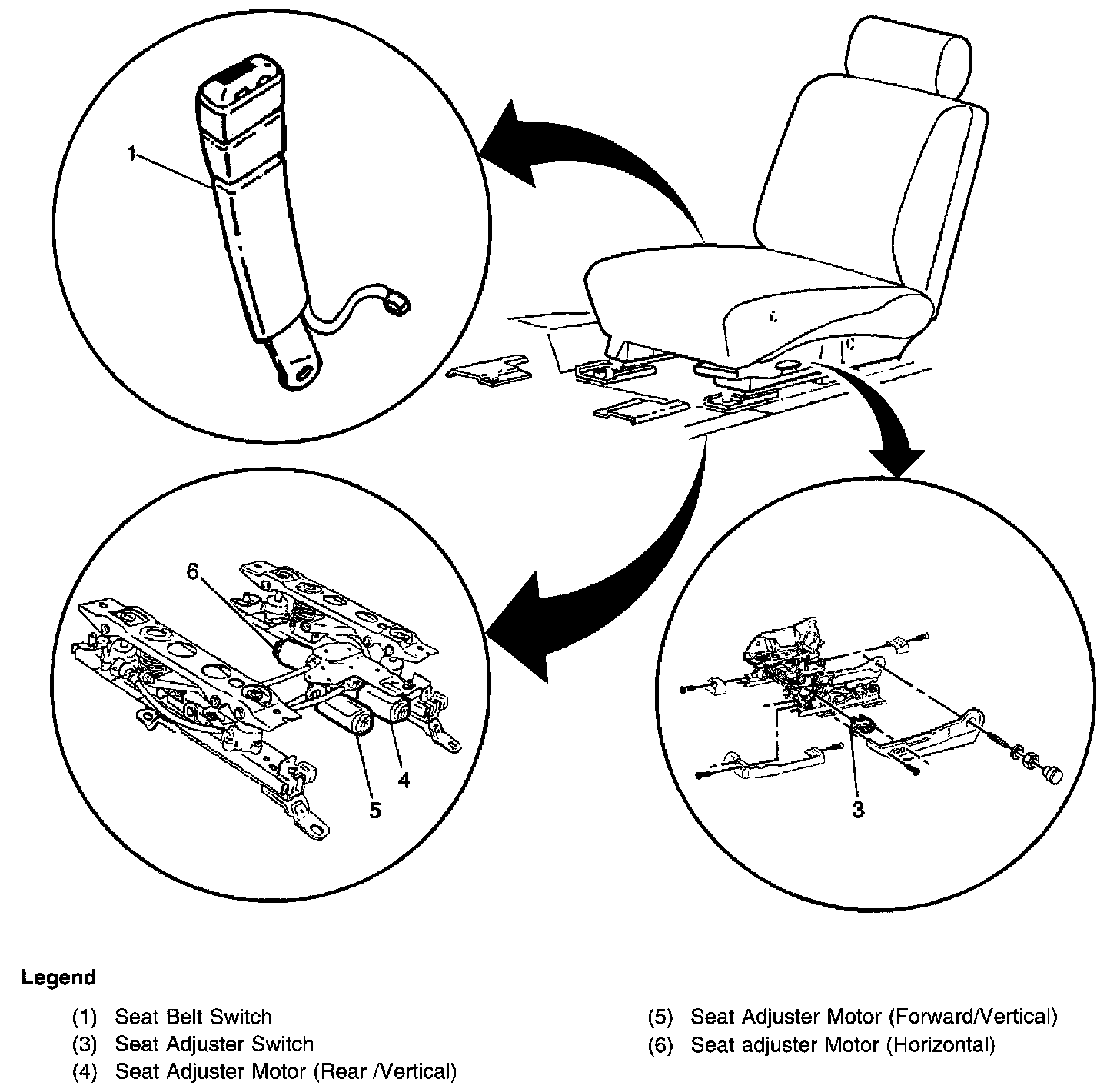

Power Seat Component View:





Part of the driver seat belt (retractor side), right side of the driver's seat
