Brake Light Switch: Service and Repair

REMOVAL PROCEDURE
1. Remove the left side instrument panel insulator.
2. Disconnect the electrical connectors.

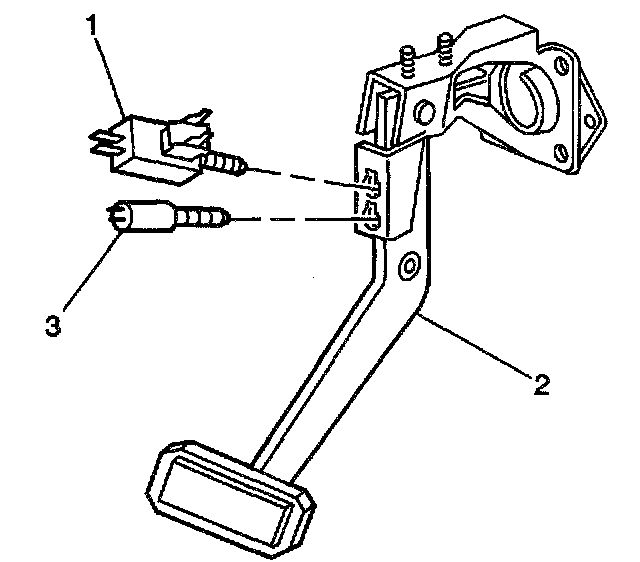

3. Remove the stoplamp switch (1) from the brake pedal bracket (2).


INSTALLATION PROCEDURE

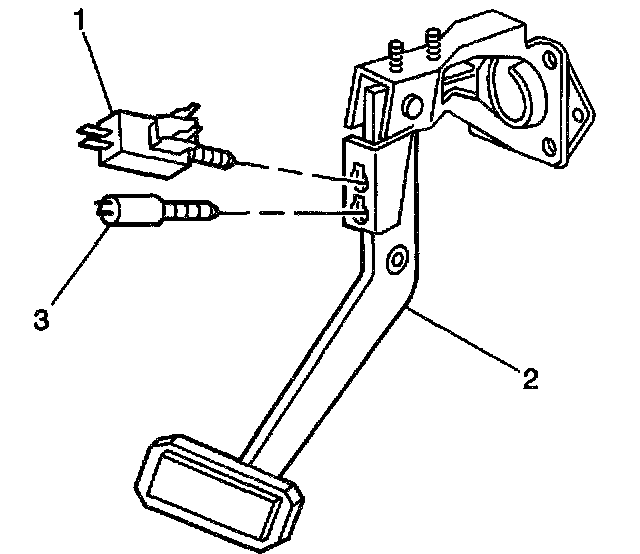

1. Install the stoplamp switch (1) to the brake pedal bracket (2).
2. Connect the electrical connectors.
3. Install the left side instrument panel insulator.
4. Adjust the stoplamp switch.
