Ambient Light Sensor: Service and Repair

REMOVAL PROCEDURE
1. Remove the Instrument Panel (IP) upper trim pad.

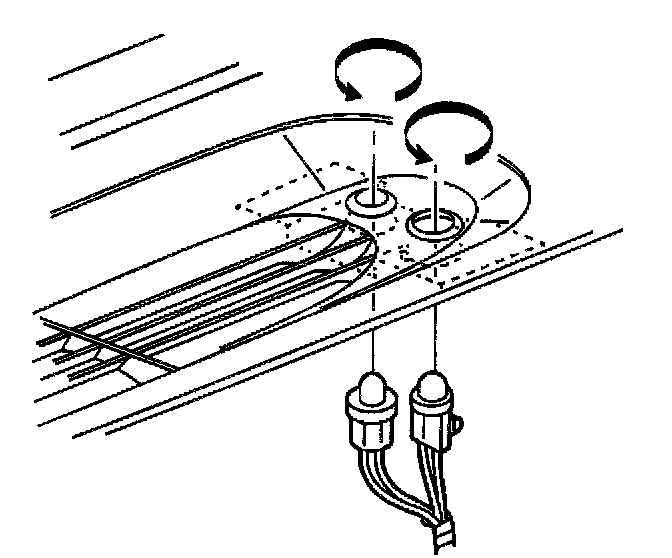

2. Rotate the Daytime Running Lamp (DRL) ambient light sensor counterclockwise to release from the IP upper trim pad.
3. Disconnect the electrical connector from the DRL ambient light sensor.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the DRL ambient light sensor.
2. Install the DRL ambient light sensor to the IP upper trim pad, then rotate the sensor clockwise to secure.
3. Install the IP upper trim pad.
