Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Ambient Temperature Sensor / Switch HVAC >> Locations >> Component Locations >> HVAC System - Automatic

HVAC System - Automatic

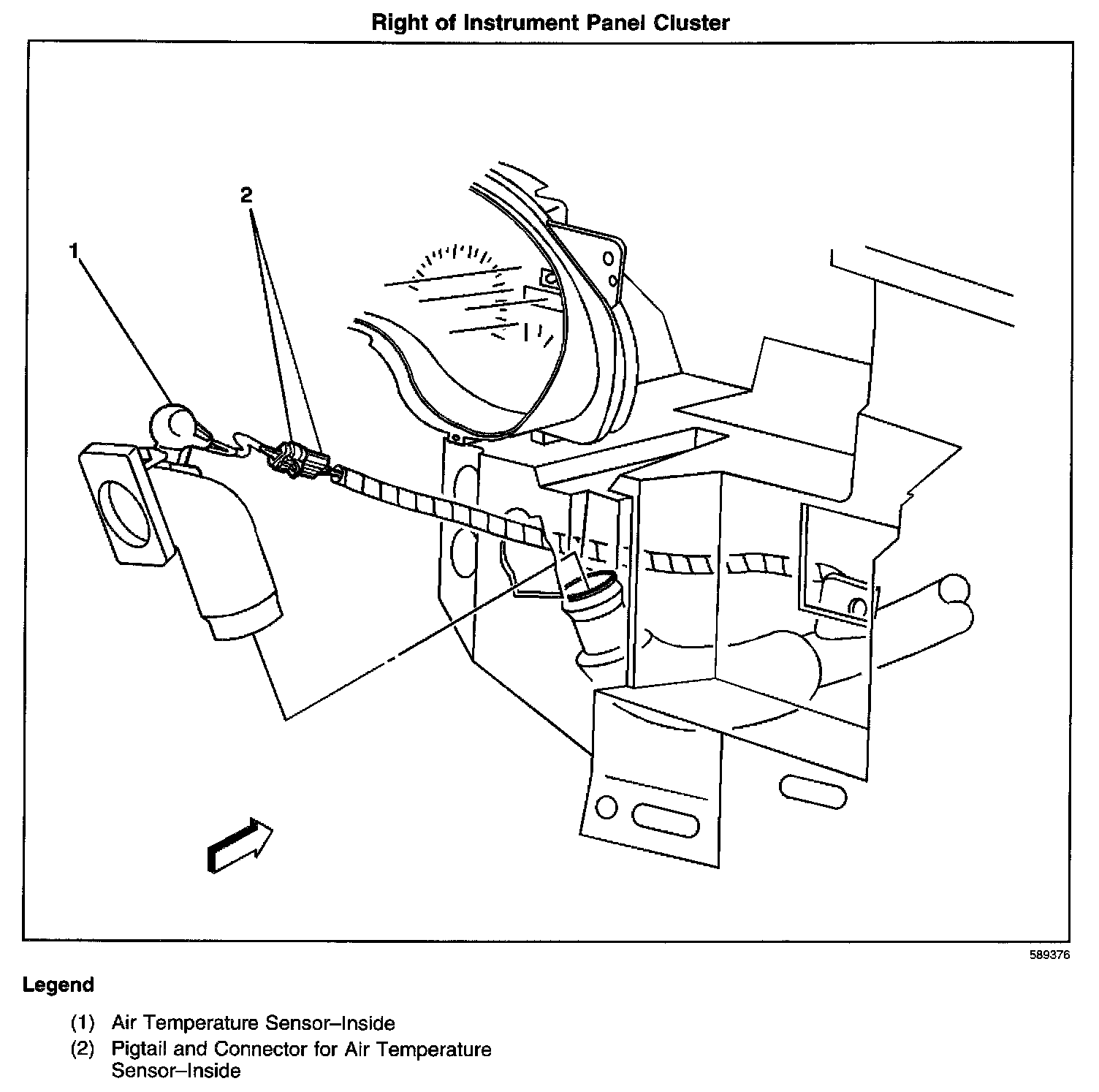

INSIDE AIR TEMPERATURE SENSOR


Locations View:






The Inside Air Temperature Sensor is located behind the I/P, between the radio and the knee bolster.
