Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cruise Control >> Cruise Control Switch >> Diagrams

Cruise Control Switch: Diagrams

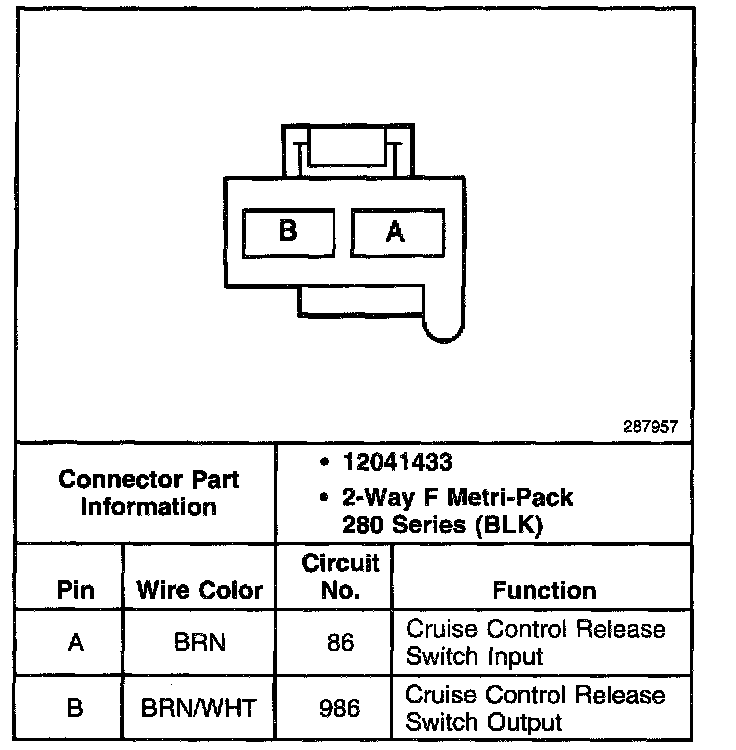

Cruise Control Release Switch:

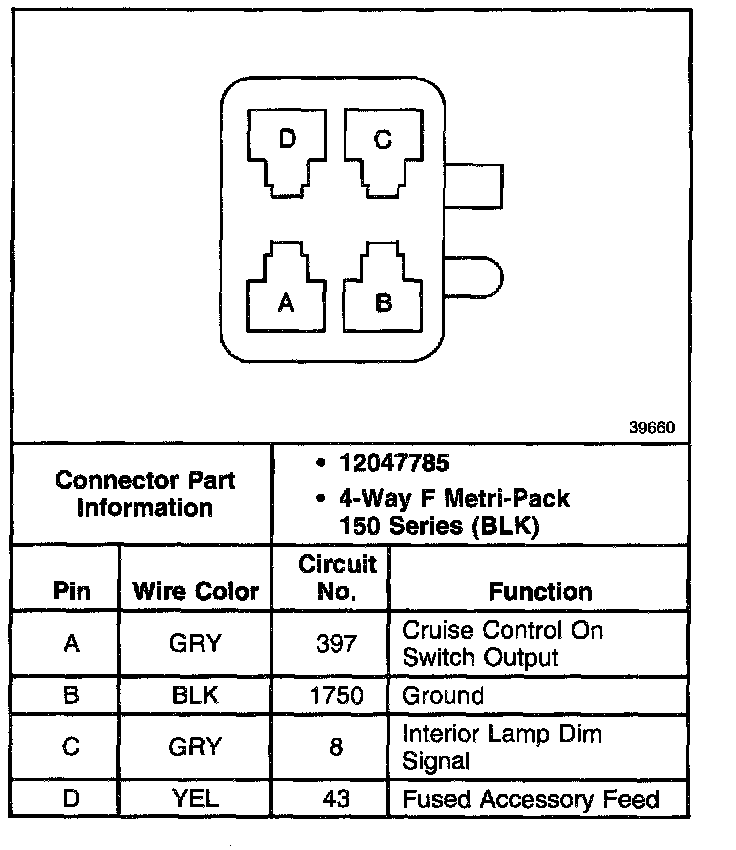

Cruise Control Switch (I/P Switch):
